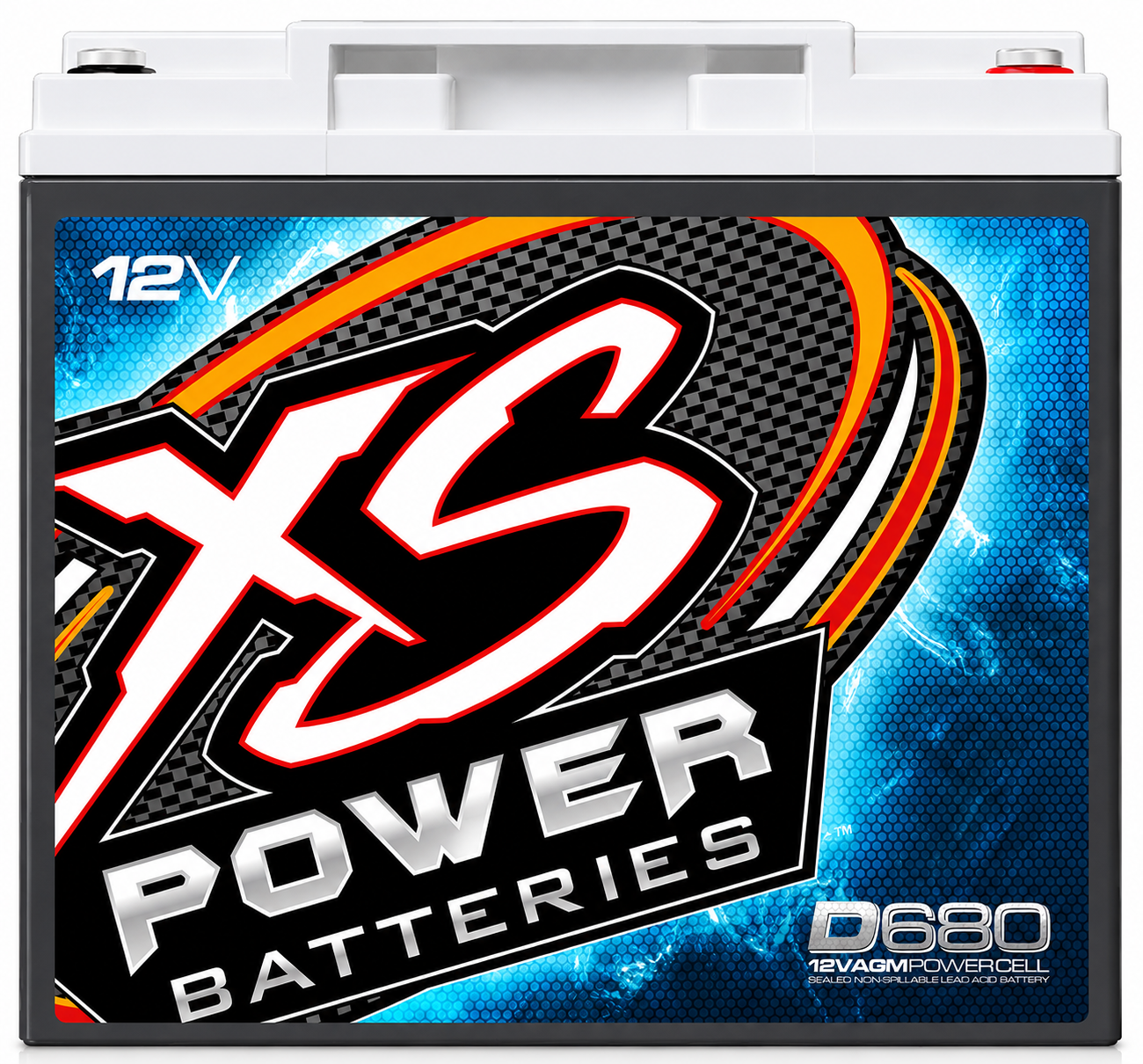

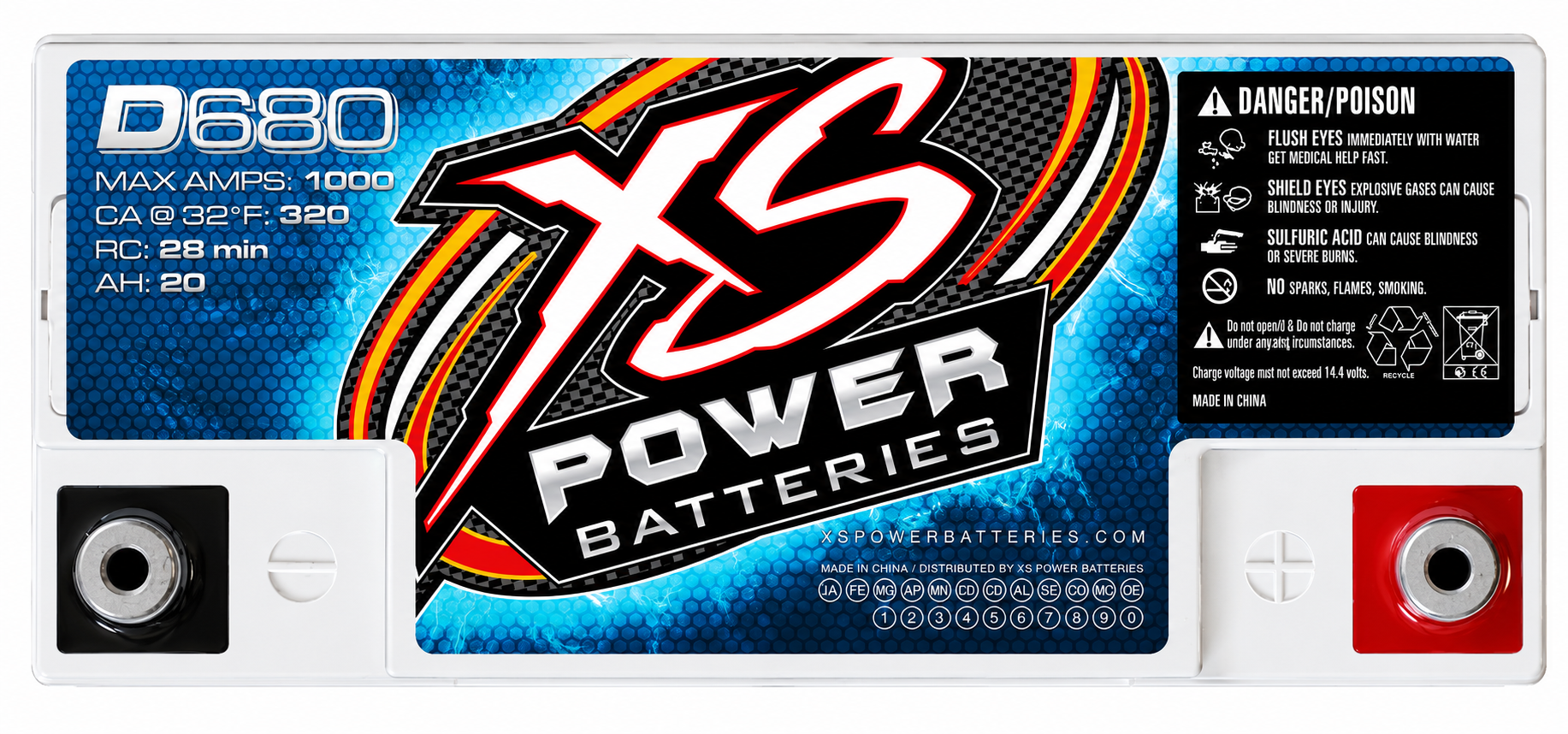

XS Power D680 12V AGM Battery 20Ah 1000A 370CA Deep Cycle Powercell
XS Power D680
Key Features:
- Product Type: Deep-Cycle AGM Battery / Power Cell
- Voltage: 12V
- Battery Chemistry: AGM (Absorbent Glass Mat)
- Maximum Amps: 1,000 A
- Cranking Amps (CA @ 32°F): 370 A
- Cold Cranking Amps (CCA @ 0°F): 326 A
- Capacity: 20 Ah
- Reserve Capacity: 24 minutes
- Secondary System Rating: Up to 1,000W
- Terminal Hardware: M6
- Polarity: Right-Hand / R
Construction
- Sealed Absorbent Glass Mat (AGM) construction
- Electrolyte is absorbed within fiberglass matting rather than free-flowing like a conventional flooded battery
- Spill-proof, maintenance-free design
- Built to withstand vibration and demanding automotive environments
- Compact housing for installations where space is limited
- M6 threaded terminal connections
Features
- Delivers up to 1,000 maximum amps
- 370 CA / 326 CCA
- 20 Ah capacity
- 24-minute reserve capacity
- Designed for up to 1,000W when used as a secondary battery
- Compact design for custom installations
- Spill-proof AGM technology
- Resistant to vibration
- M6 terminal hardware included
Dimensions
- Length: 7.13"
- Width: 3.03"
- Height: 6.57"
- Battery Weight: 13.69 lb
- Package Dimensions: Approx. 7.83" × 4.21" × 8.35"
- Package Weight: Approx. 15.7 lb
Performance
- Maximum Output: 1,000 A
- Cranking Amps: 370 A
- Cold Cranking Amps: 326 A
- Amp-Hour Capacity: 20 Ah
- Reserve Capacity: 24 minutes
- Secondary Battery Power: Up to 1,000W
- Designed to deliver high current quickly for car-audio and other high-demand 12V electrical applications
Applications
- Car audio systems
- Secondary/auxiliary automotive battery installations
- Performance and customized vehicles
- LEDs and other 12V automotive electronics
- Marine/RV applications where specifications are compatible
- Compact high-current power installations

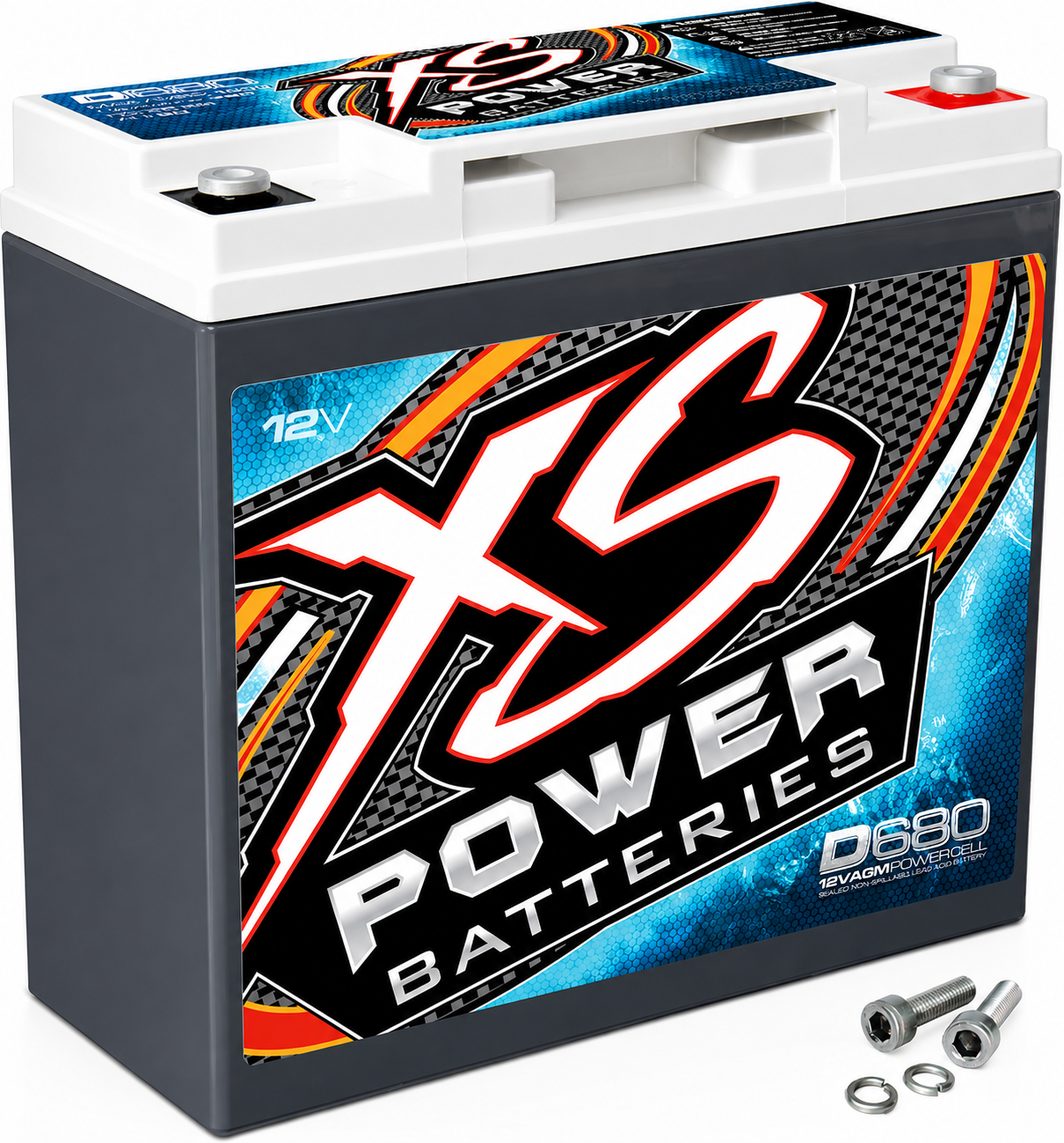

Included
- 1 × XS Power D680 12V AGM Battery
- 2 × M6 Terminal Bolts
- 2 × Split Lock Washers
- Instruction/Owner's Manual
