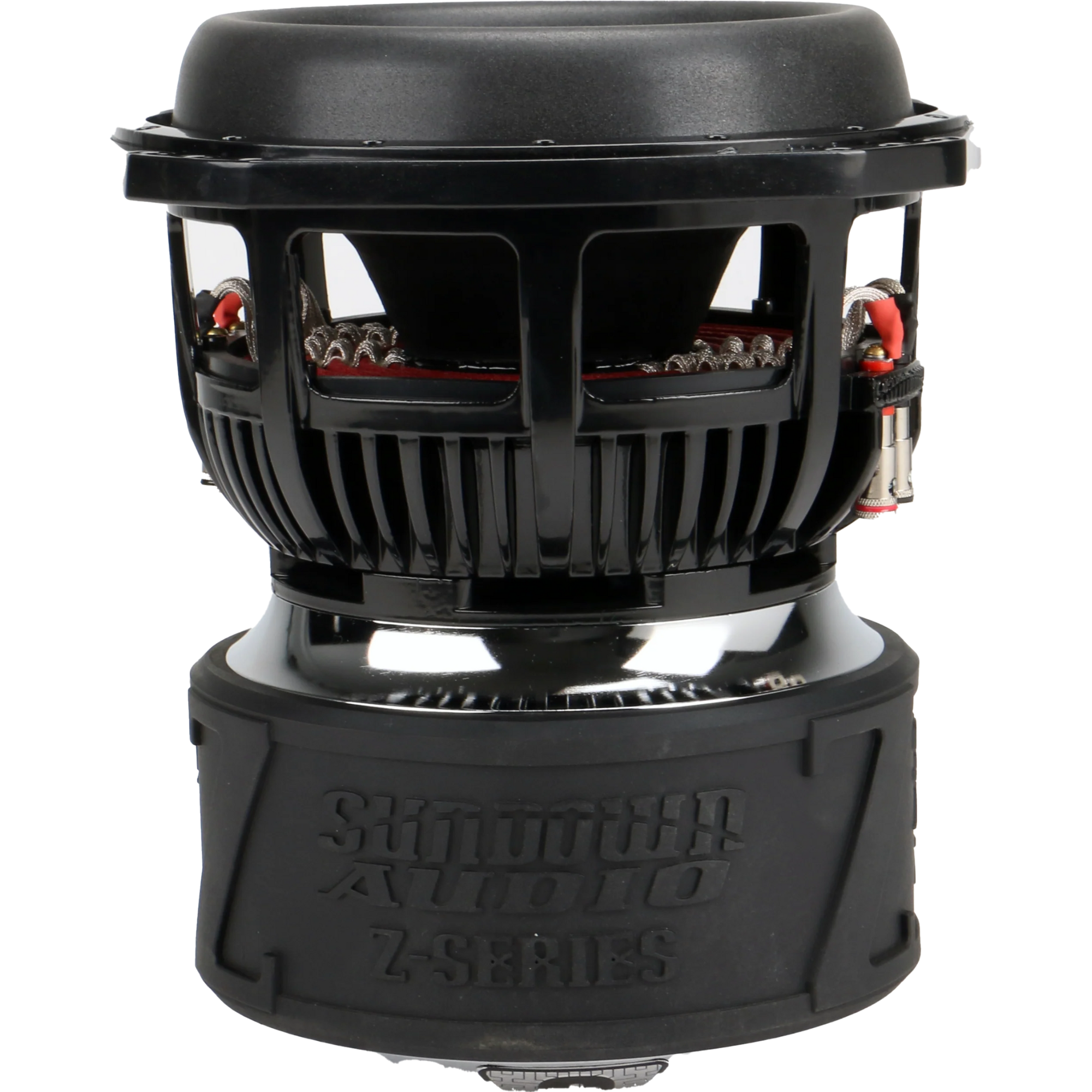

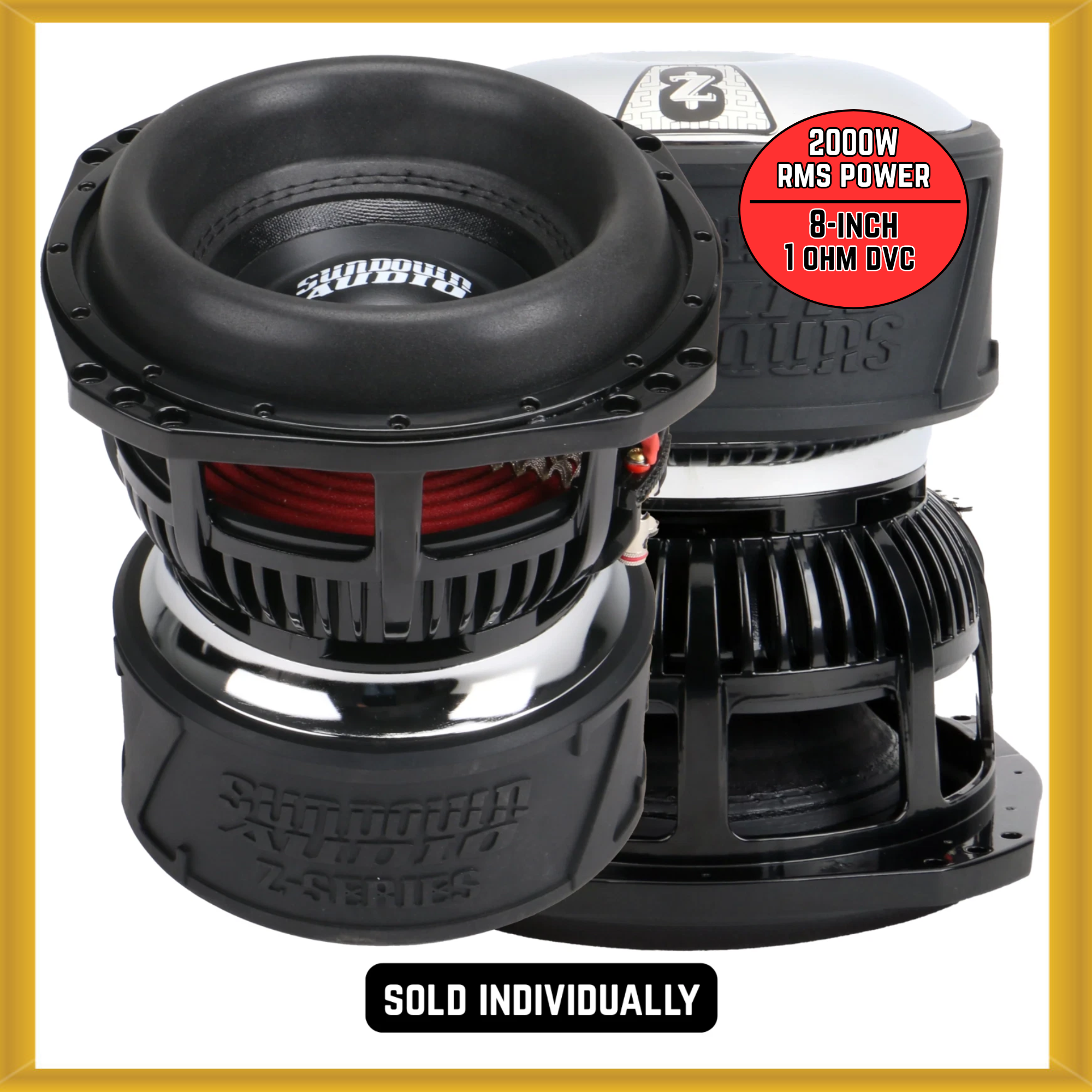

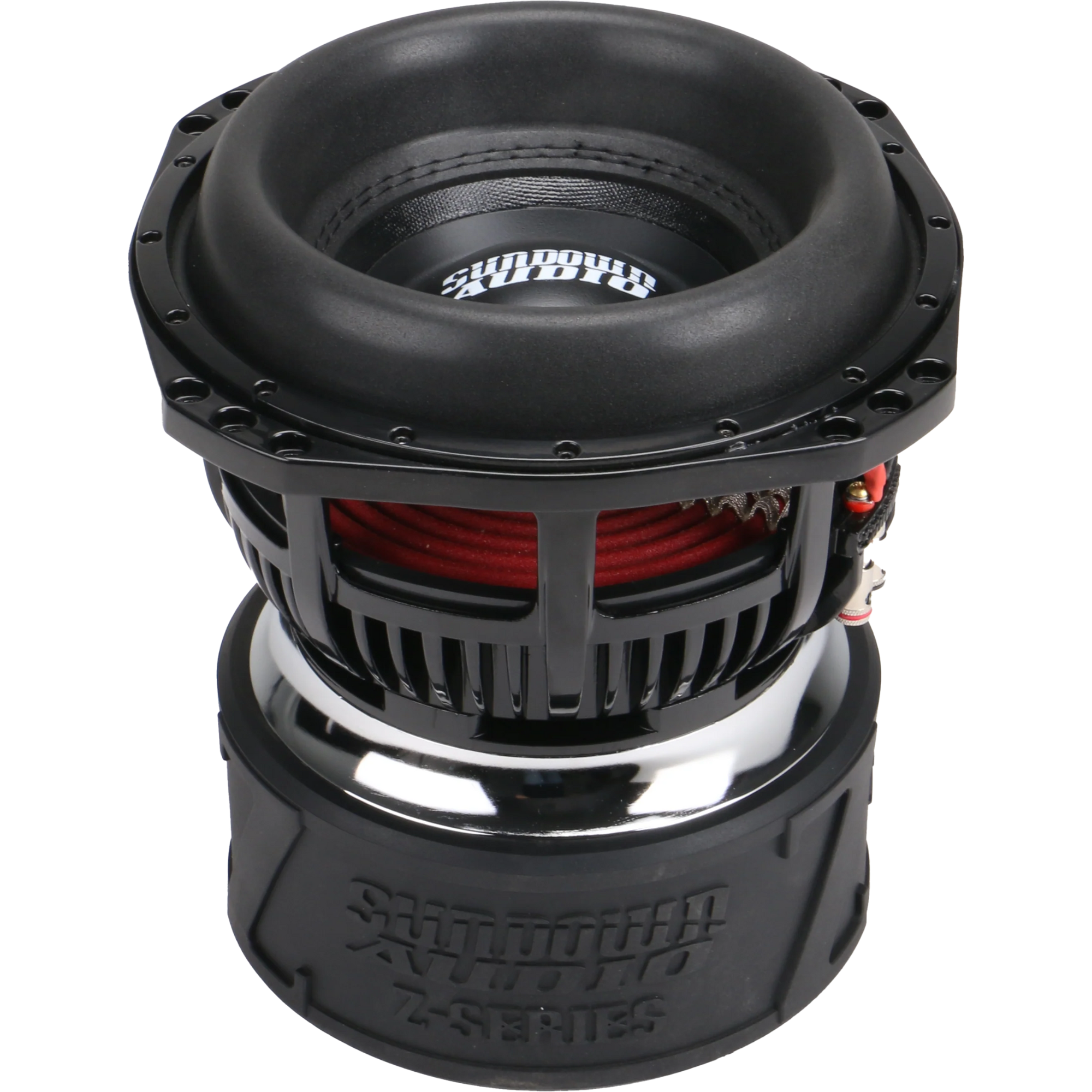

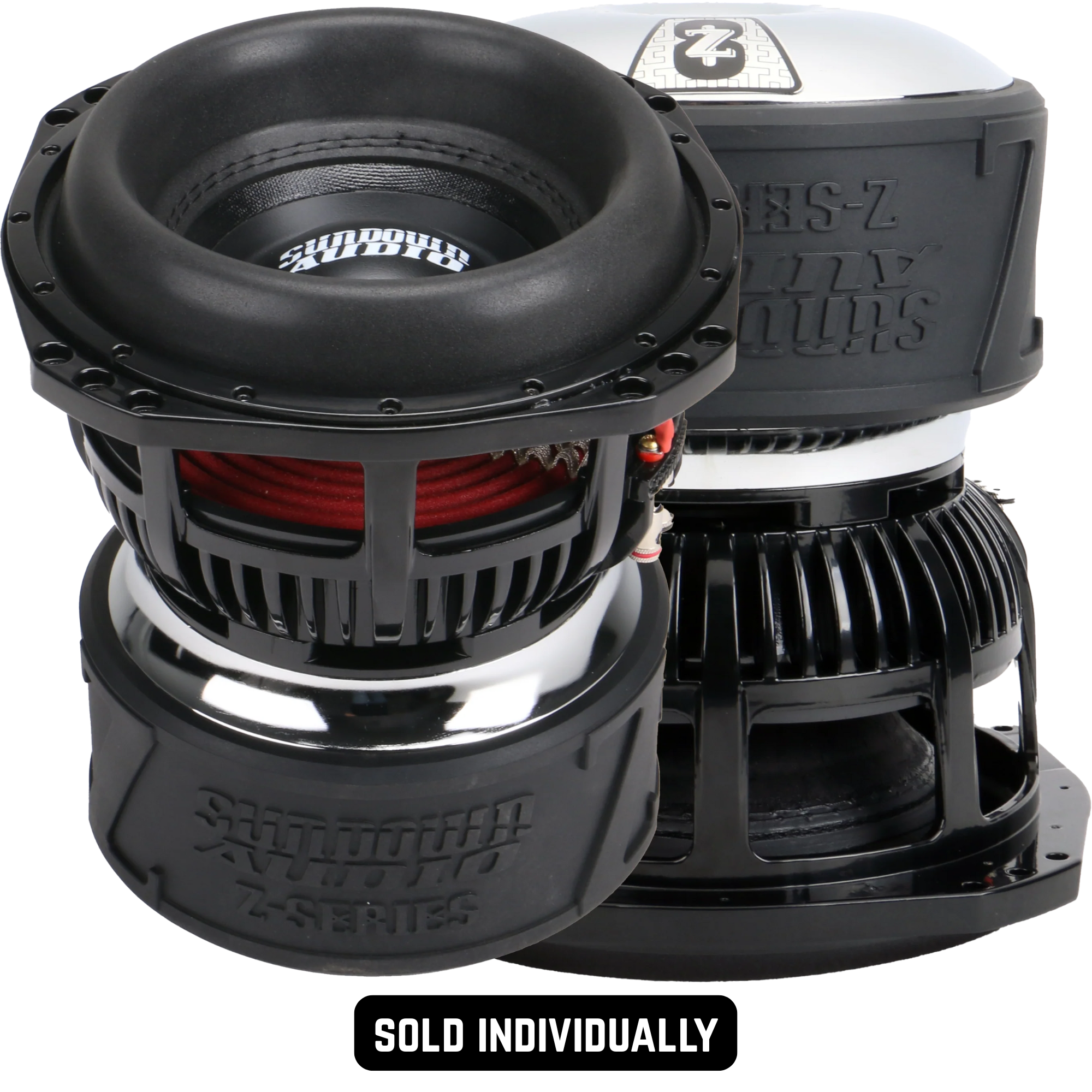

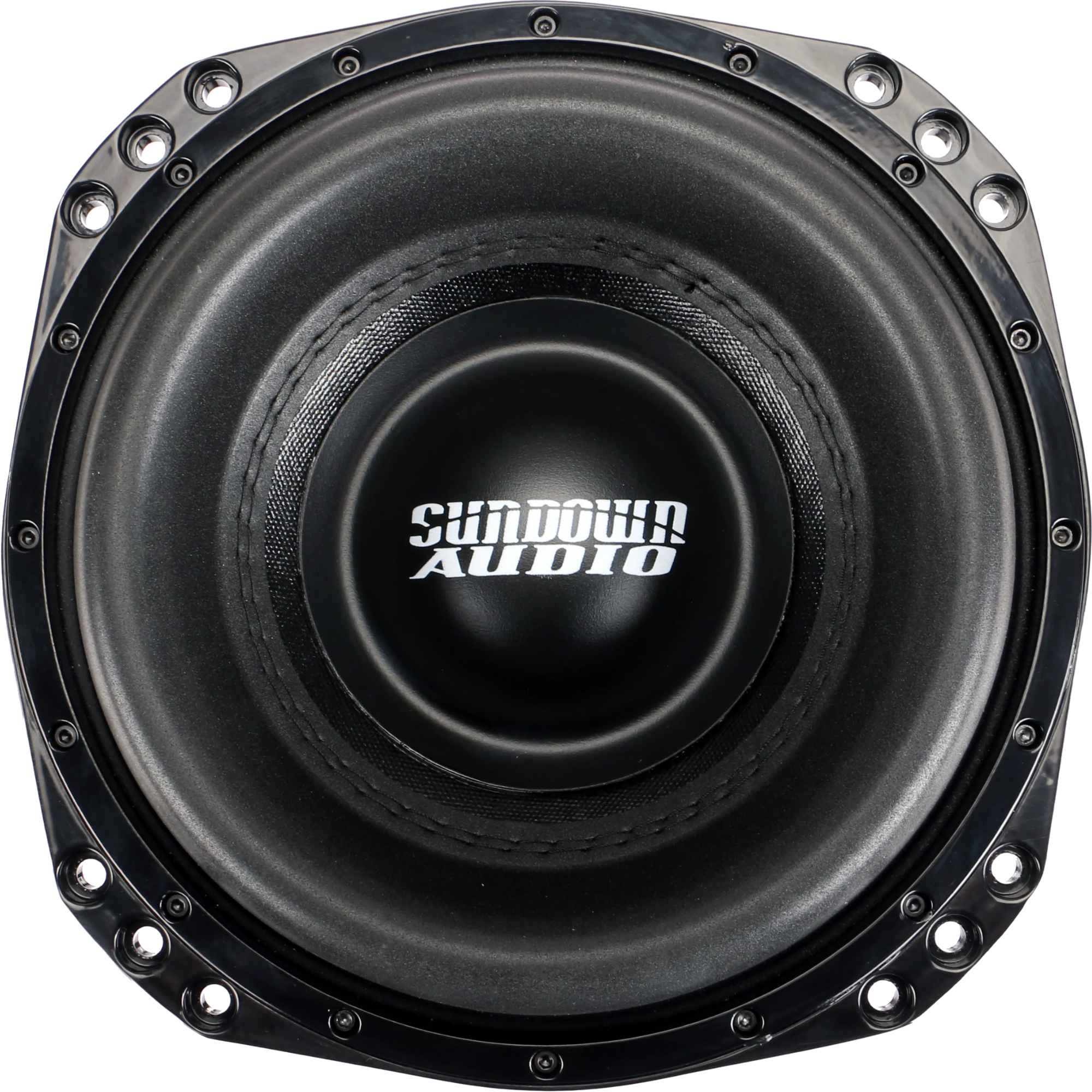

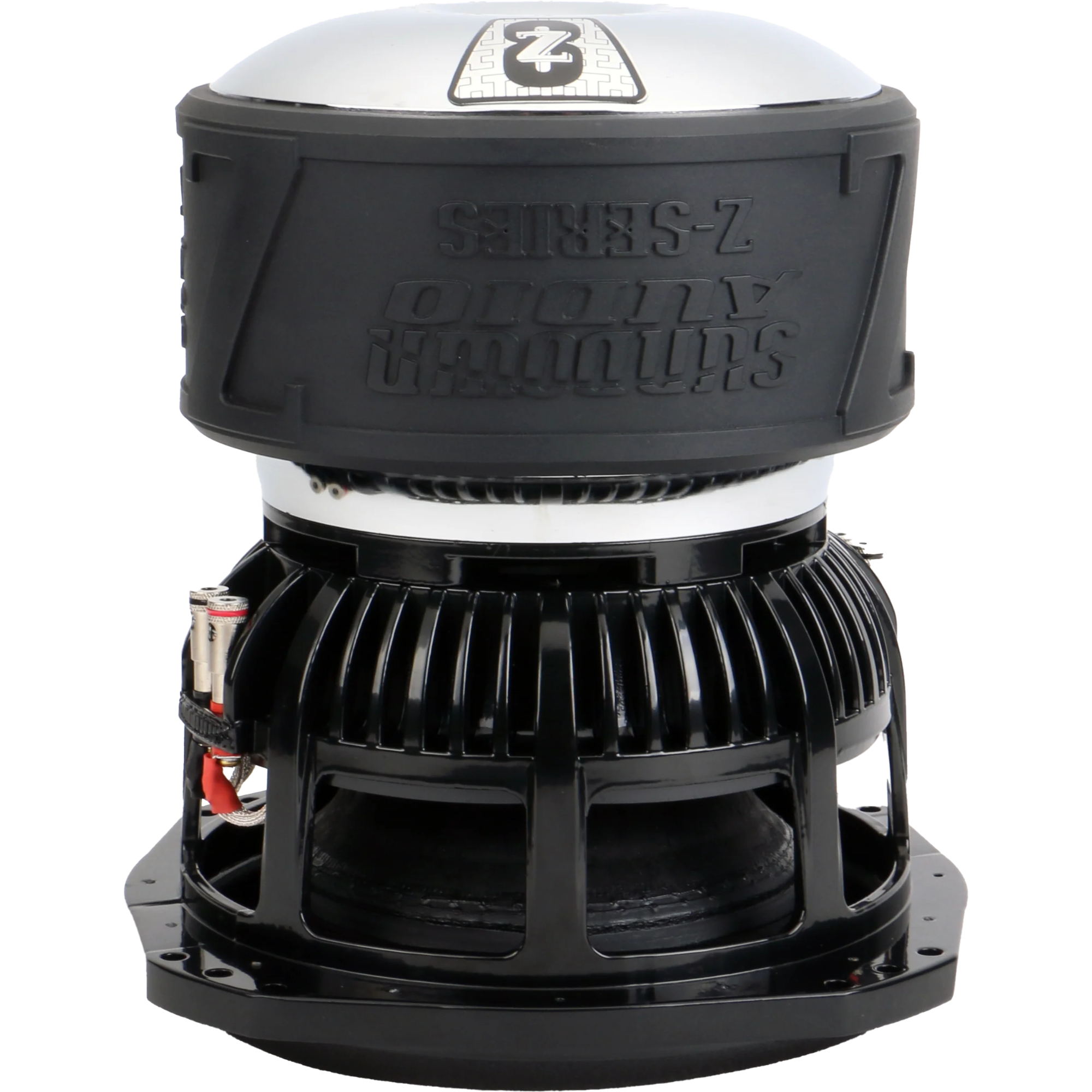

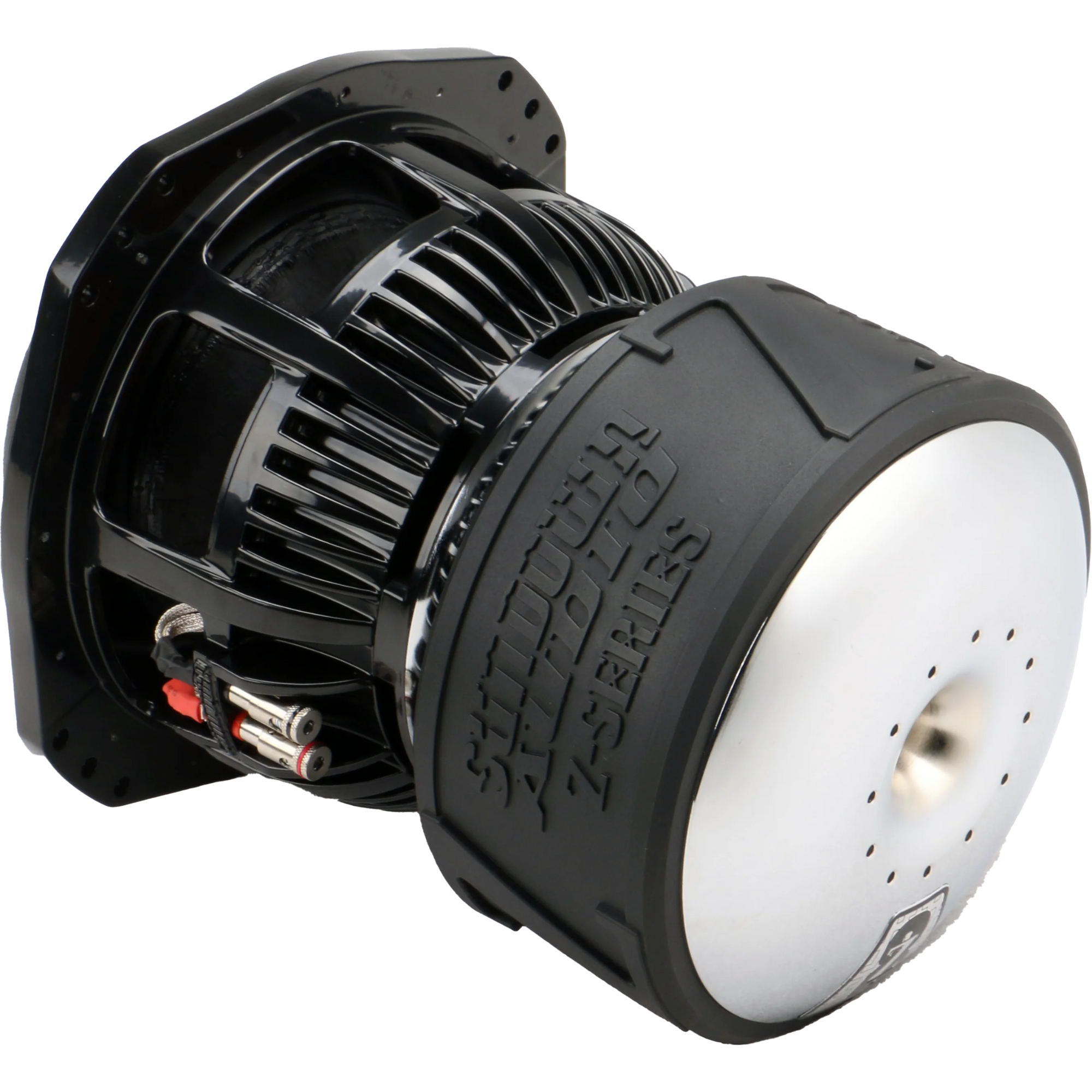

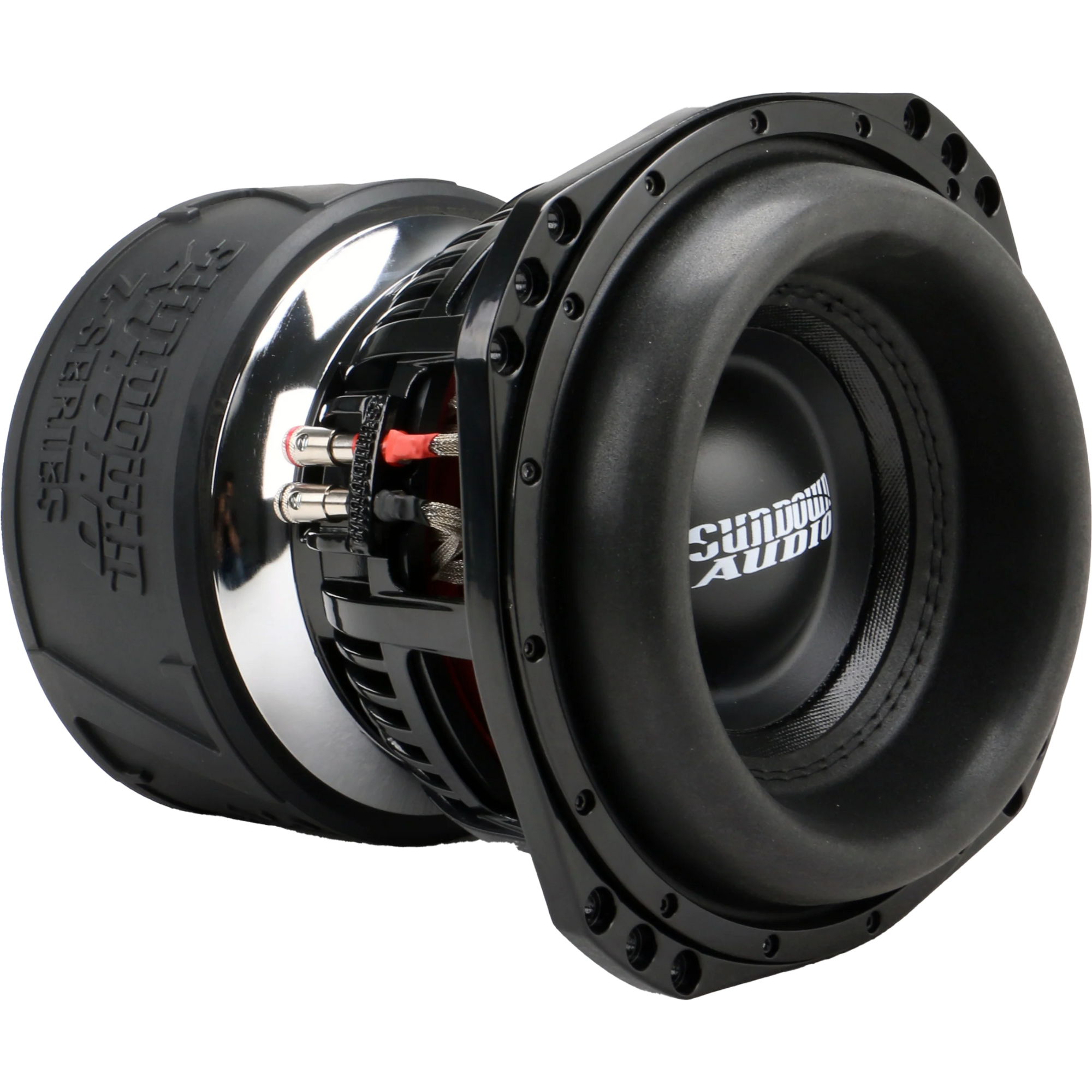

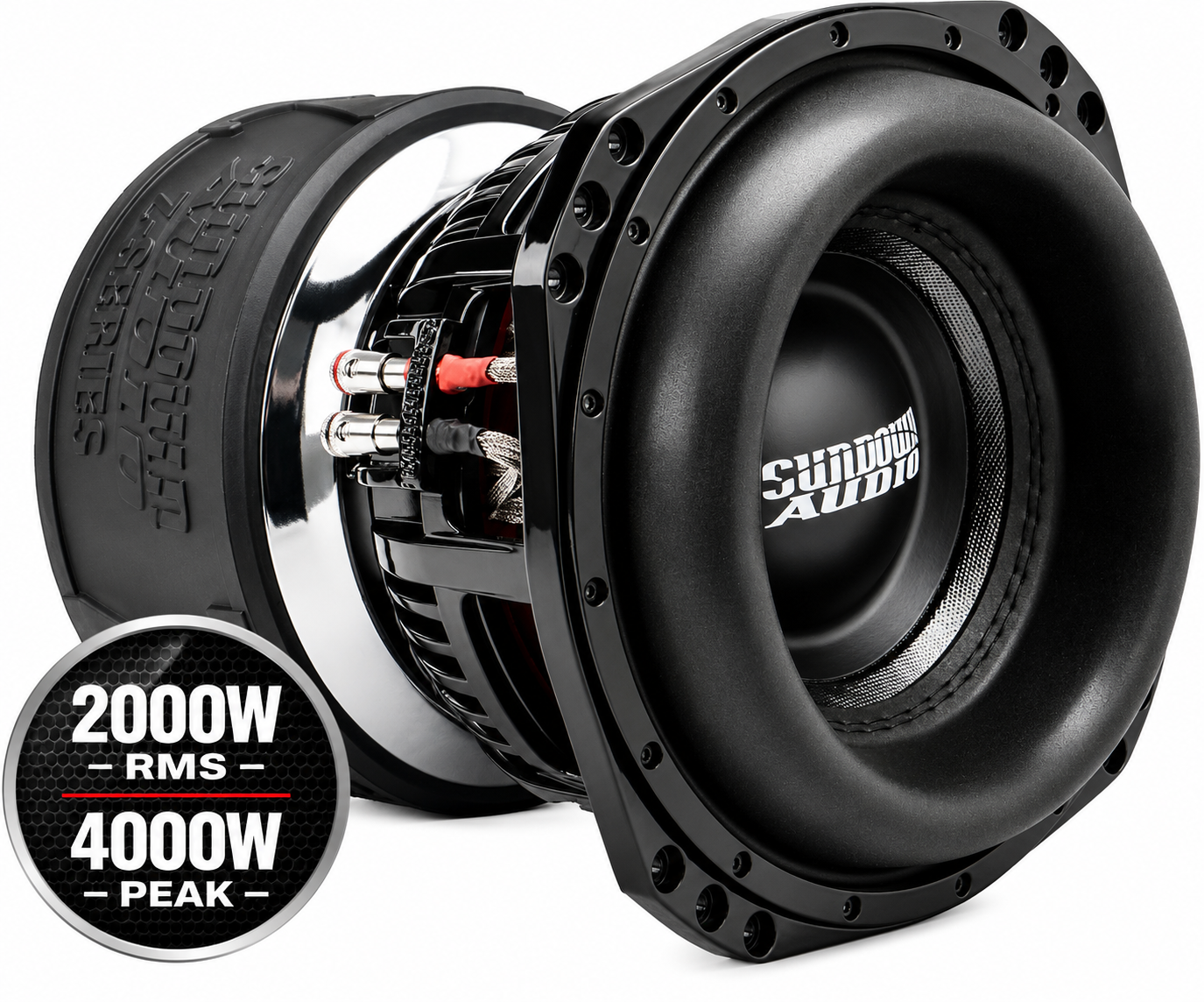

Sundown Audio Z-Series Z8 8-inch 2000W RMS Dual 1 Ohm Voice Coils Car Subwoofer

Sundown Audio Z-Series 8-inch Dual 1 Ohm Voice Coils Car Subwoofer
Model: Z8D1
SOLD INDIVIDUALLY

4000W MAX
2000W RMS
Dual 1 Ohm Voice Coils
Xmax = 30mm
Heavily vented magnetic gap
Spring-Loaded Terminals
Optimized high-velocity pole vent
Innovative high-velocity cast-aluminum vented frame spacer ring
Black aluminum 3-inch 8-layer voice coil
Mega-Roll v.2 surround
Custom tooled basket
Large aluminum Faraday (shorting) Ring
Stitched-On XL Tinsel Leads to prevent fatigue and failure
Custom-tooled ultra-linear spider packs
Mount Depth: 9.5″

SPECIFICATIONS
RE (Ohms): 2.08
FS (Hz): 43.592
VAS (L): 3.837
Qes: 0.712
Qms: 5.069
Qts: 0.624
Le (mH): 1.677mH
BL (NA): 14.516
Mms (Grams): 263.02g
Cms (uM/N): 50.68 uM/N
Sens (dB @ 1w/1m): 78.24dB
Xmax: 30mm

ENCLOSURE SPECIFICATIONS
Ported Enclosure: 1.0 cu.ft. net
Recommended Tuning: 32Hz
Recommended Port Area: 15 sq. in.
Displacement: .12 cu. ft.
Depth: 9.5"
Outside Diameter: 10"
Cut-Out: 8.2"
