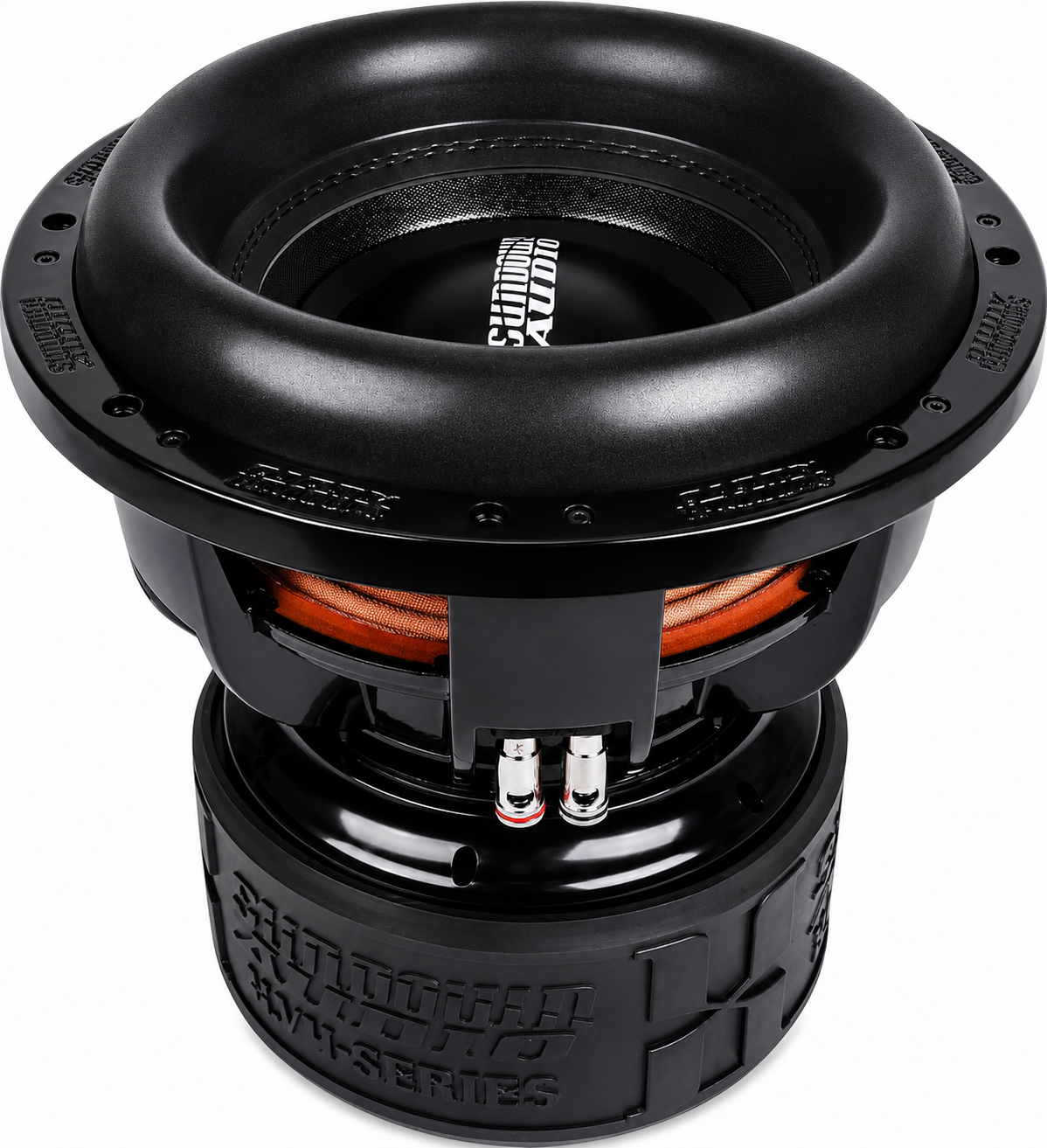

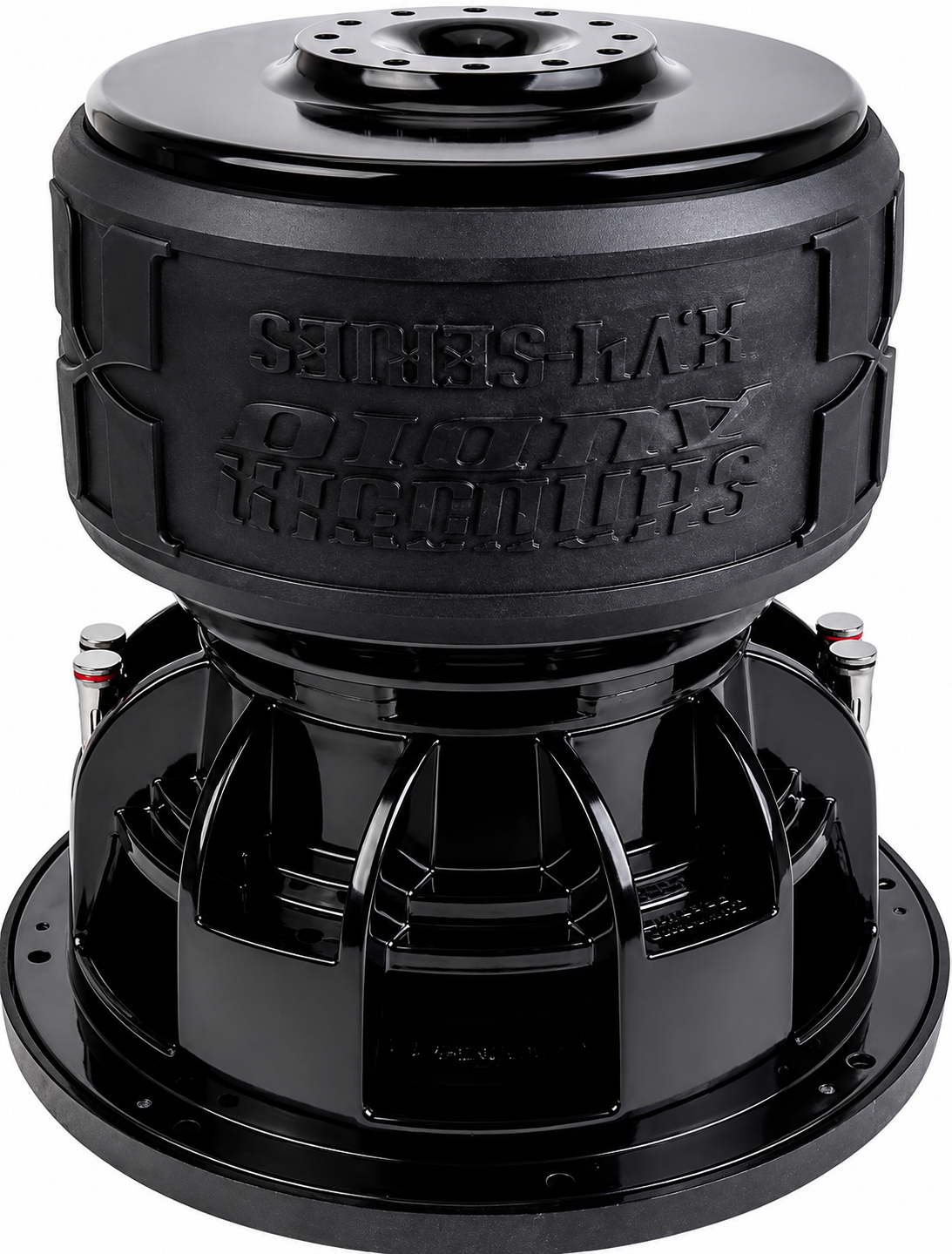

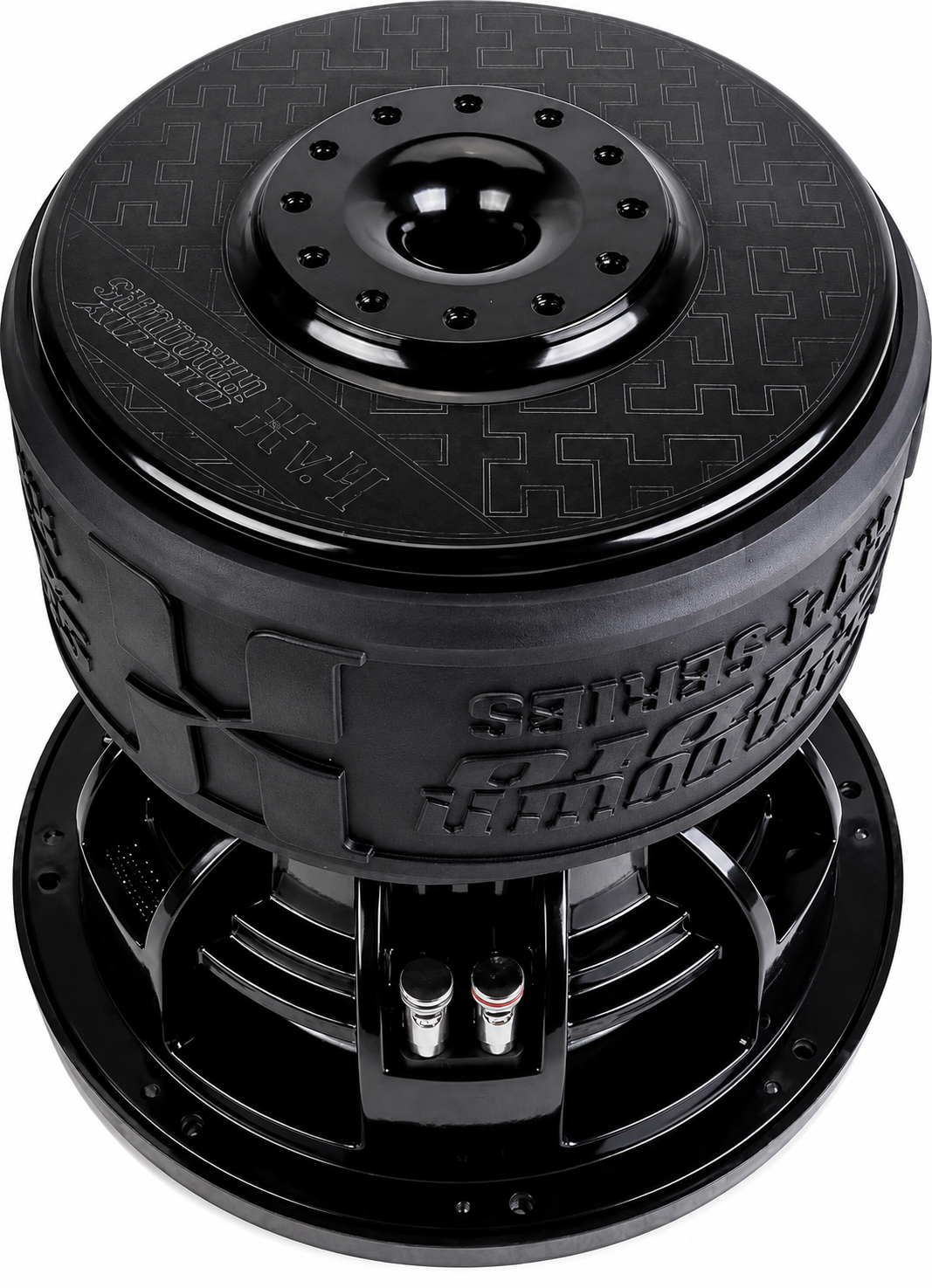

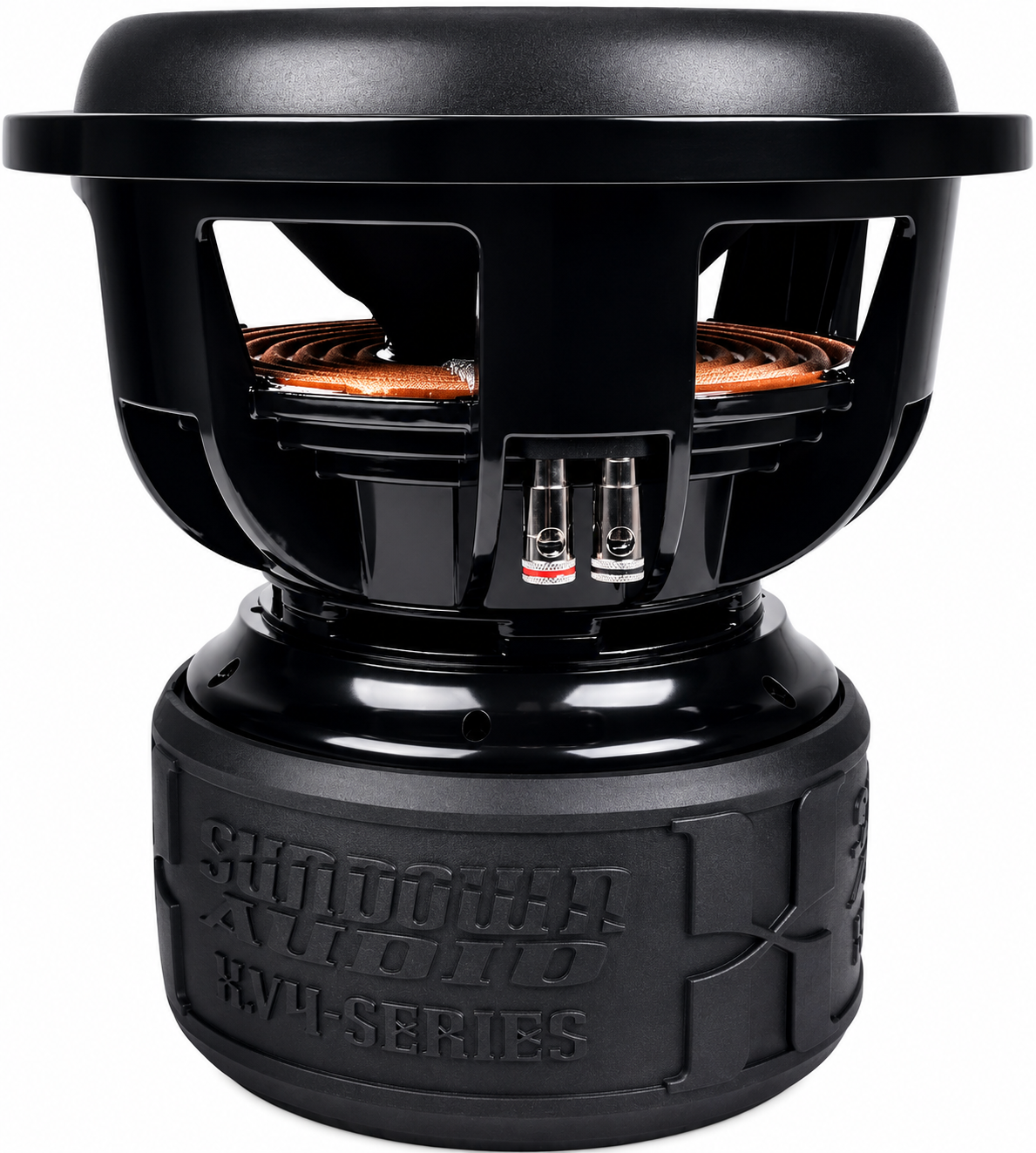

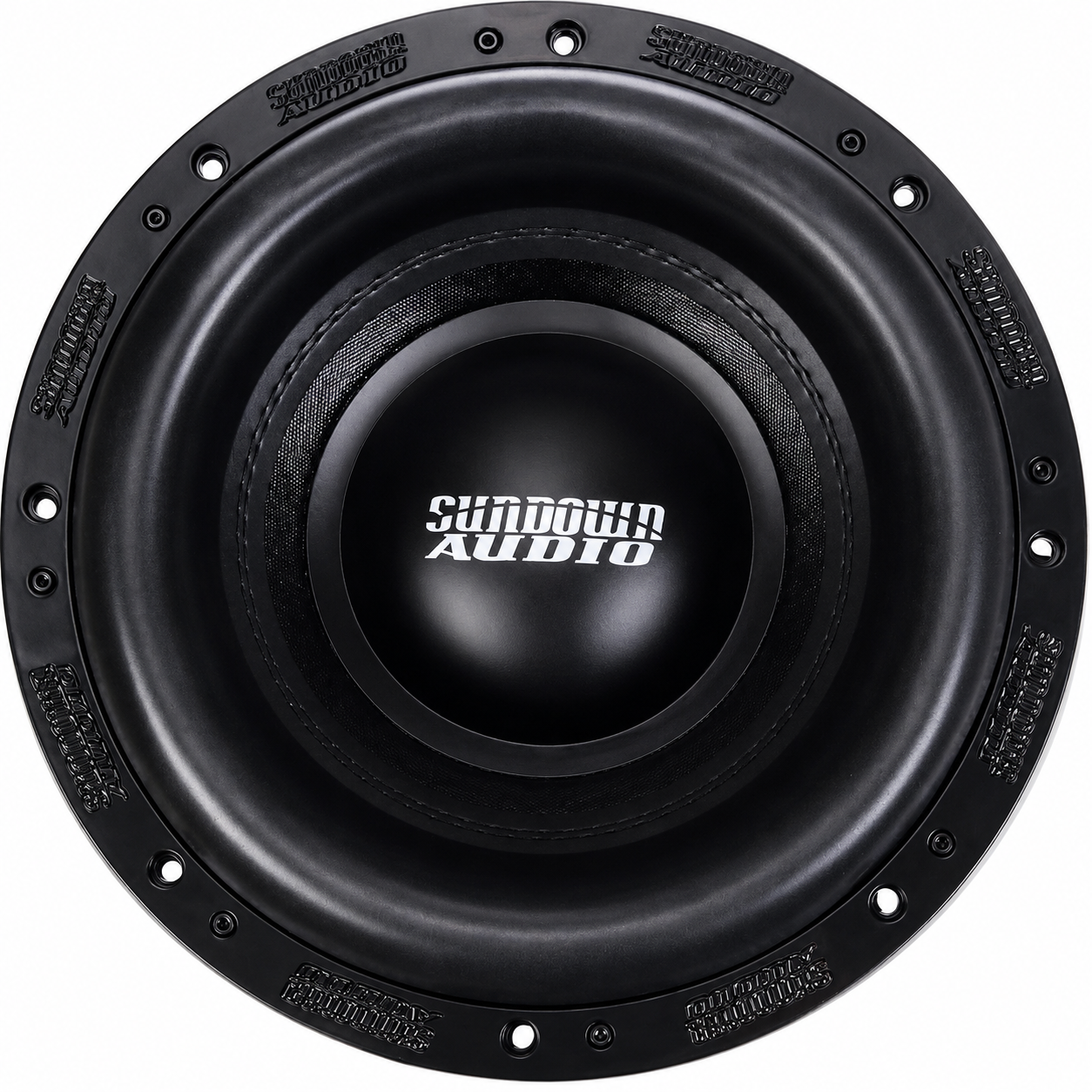

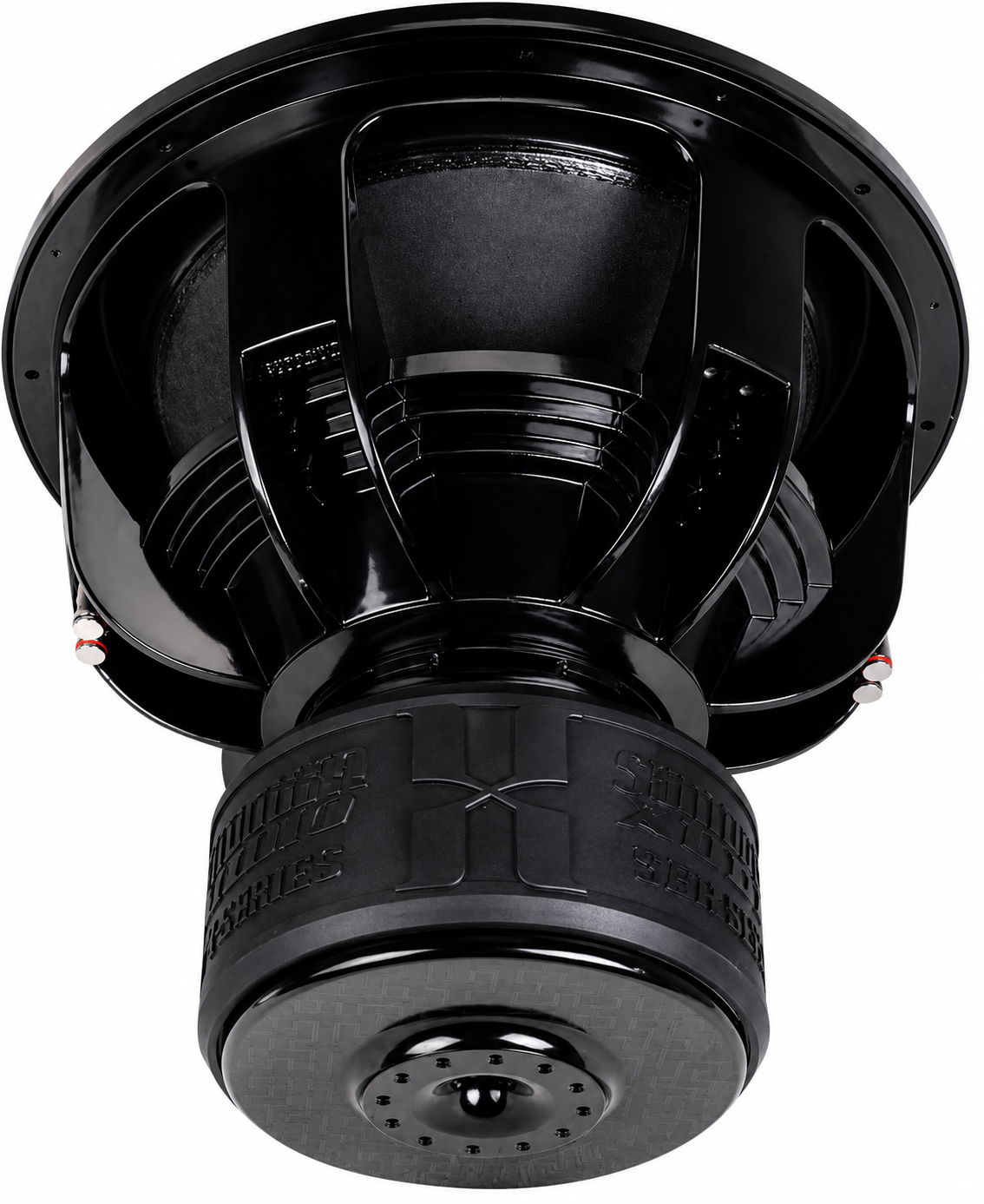

Sundown Audio XV412D1 12" Xv4 Subwoofer 3000W RMS Dual 1 Ohm
Sundown Audio XV4-12 D1
Key Features:
- Product Type: High-Output Car Audio Subwoofer
- Size: 12"
- Voice Coil: Dual 1-Ohm (DVC 1Ω)
- RMS Power Handling: 3,000 W
- Peak Power Handling: 6,000 W
- Xmax: 30 mm
- Sensitivity: 83.47 dB
- Recommended Enclosure: Ported
Construction
- Heavy-duty XV4 motor structure
- Advanced XV4 voice-coil design
- Reinforced cone engineered for high-excursion operation
- Heavy-duty suspension system for controlled cone movement
- Optimized cooling system for sustained high-power operation
- Motor Diameter: 9.25"
Features
- Dual 1-ohm voice-coil configuration
- High-power design for daily and competition-level systems
- 30 mm Xmax for substantial linear excursion
- Reinforced cone for durability at high output
- High-efficiency motor structure with strong BL factor
- Optimized specifically for ported enclosures
- Designed for deep, high-output bass reproduction
Dimensions
- Overall Diameter: 12.81"
- Cutout Diameter: 11.09"
- Mounting Depth: 11.75"
- Motor Diameter: 9.25"
- Driver Displacement: 0.23 cu. ft.
Performance
- RMS Power: 3,000 W
- Peak Power: 6,000 W
- Xmax: 30 mm
- Fs: 39.39 Hz
- Re: 2.05 Ω
- Qts: 0.50
- Qes: 0.58
- Qms: 4.95
- Vas: 14.13 L
- BL: 24.4 T·m
- Mms: 343.14 g
- Le: 1.33 mH
- Sensitivity: 83.47 dB
Applications
- High-output car audio systems
- SPL/competition bass systems
- High-power daily-driver systems
- Custom ported subwoofer enclosures
- Deep-bass and high-excursion installations
Recommended Enclosure
- Ported Volume: 2.5 cu. ft.
- Tuning Frequency: 32 Hz
- Recommended Port Area: 40 sq. in.
- Sealed Enclosure: Not recommended
- 4th-Order Sealed Side: 1.0 cu. ft.
- 4th-Order Ported Side: 3.0 cu. ft.
Included
- 1 × Sundown Audio X-Series XV4 12" D1 Subwoofer
