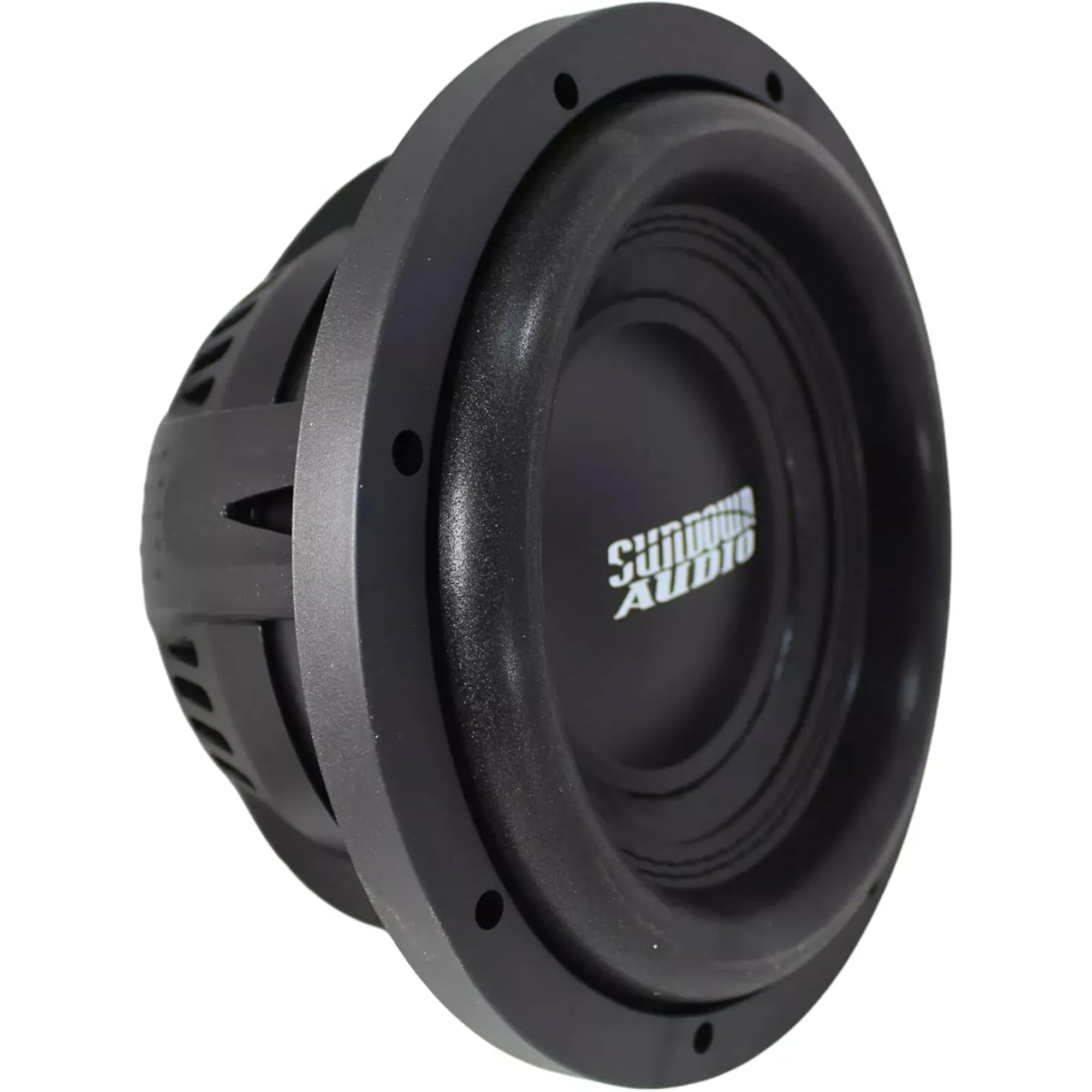

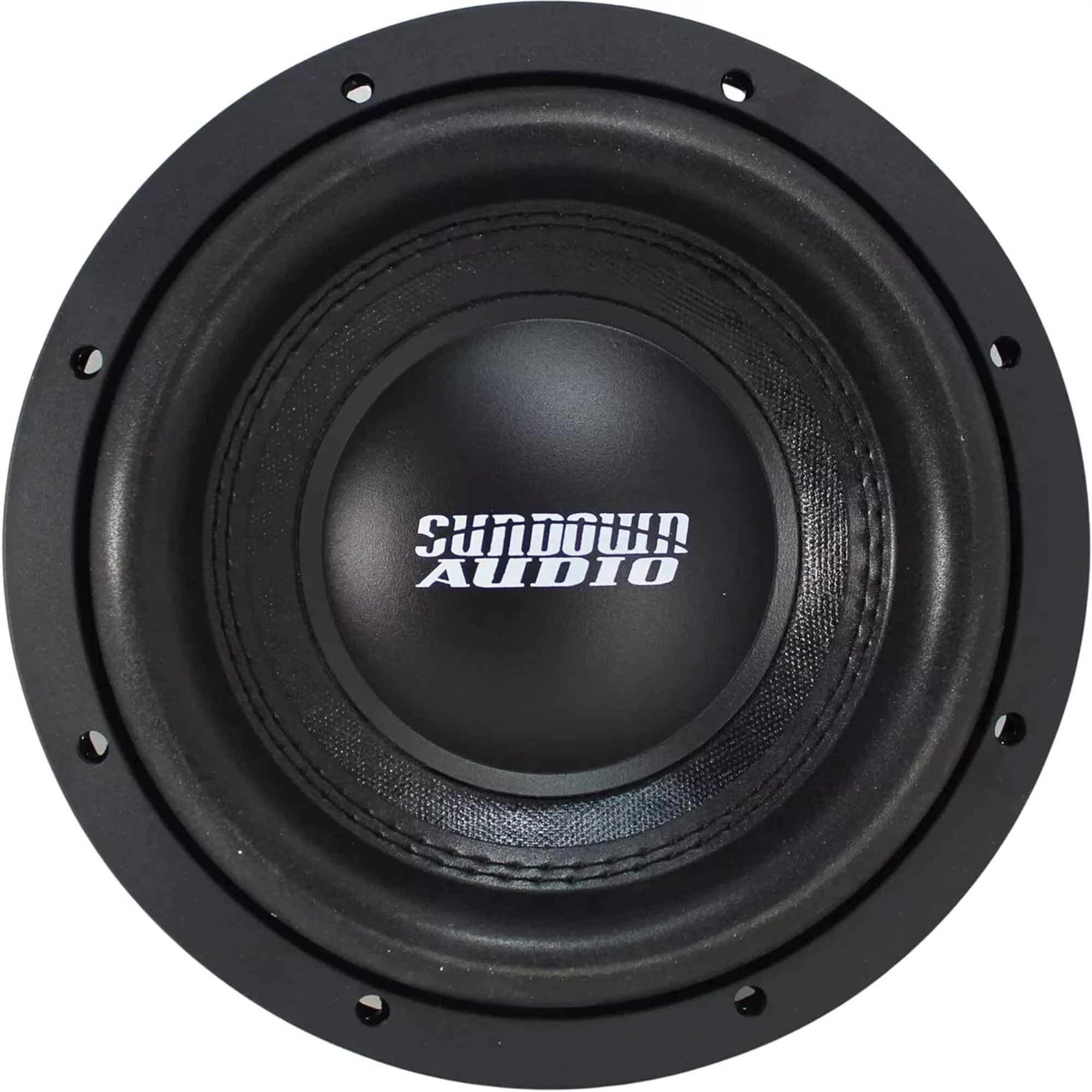

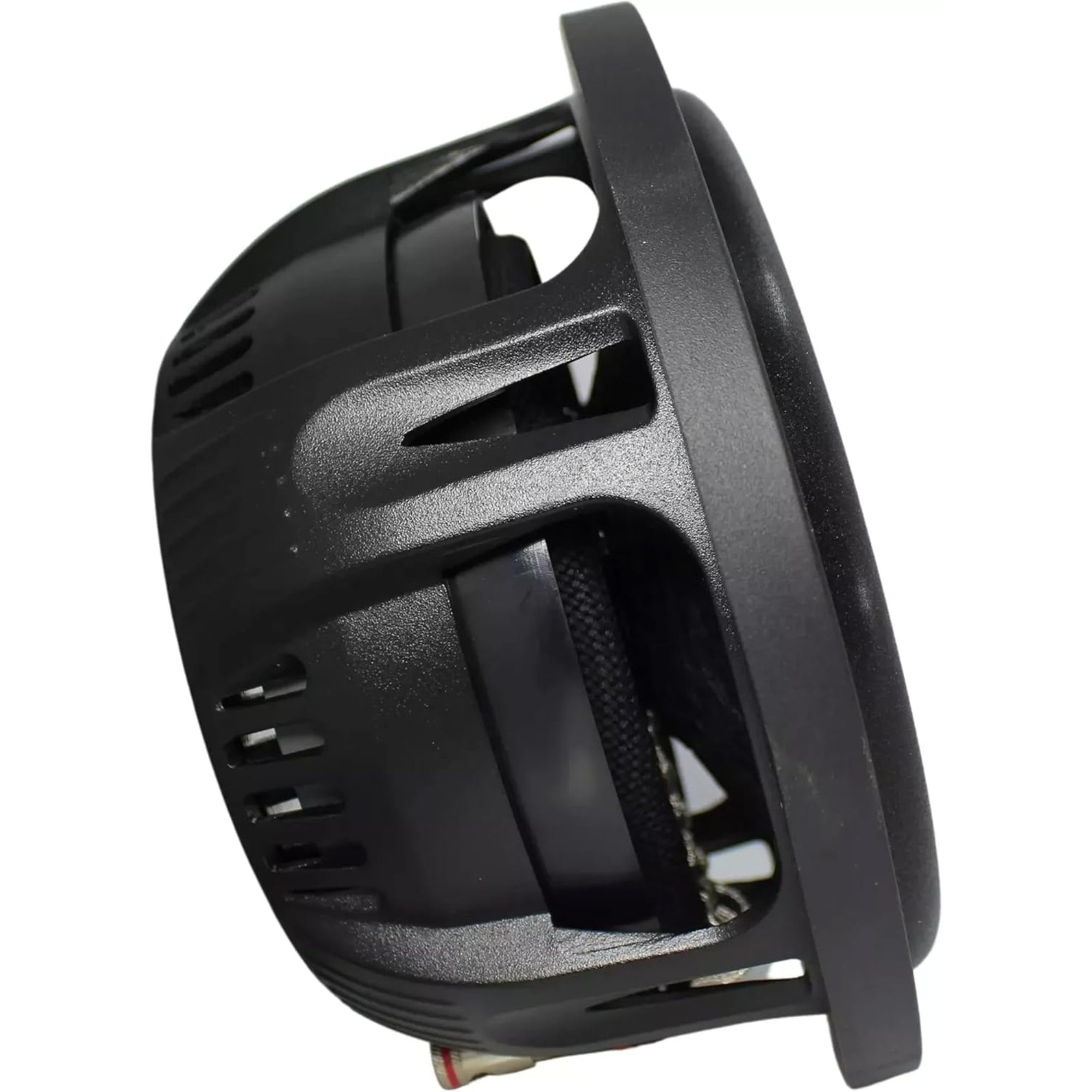

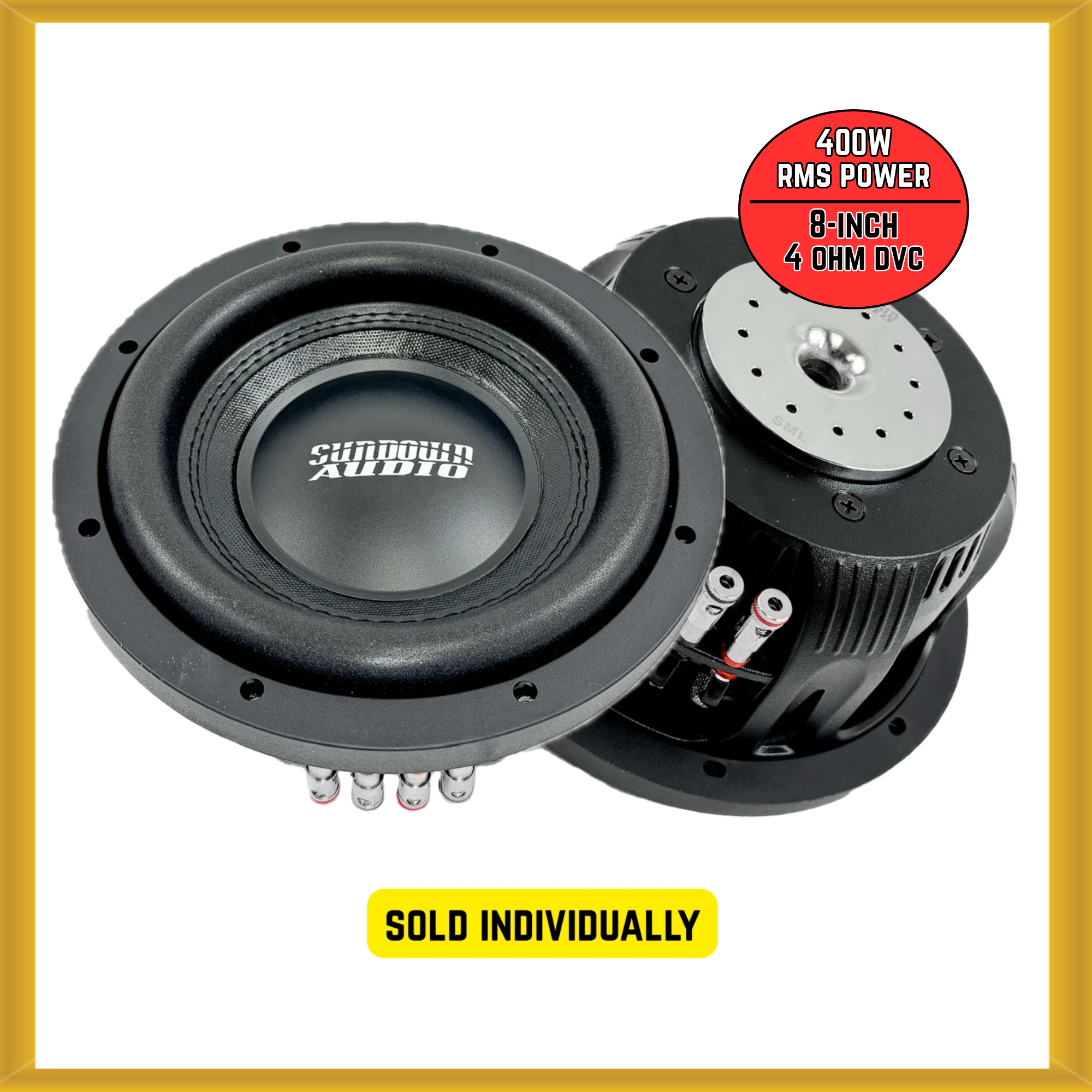

Sundown Audio SML-Series 8" 400W RMS Power Dual 4 Ohm Voice Coils Car Subwoofer
Sundown Audio SML-Series 8-Inch Dual 4 Ohm Voice Coils Car Subwoofer
Model: SML-8-D4

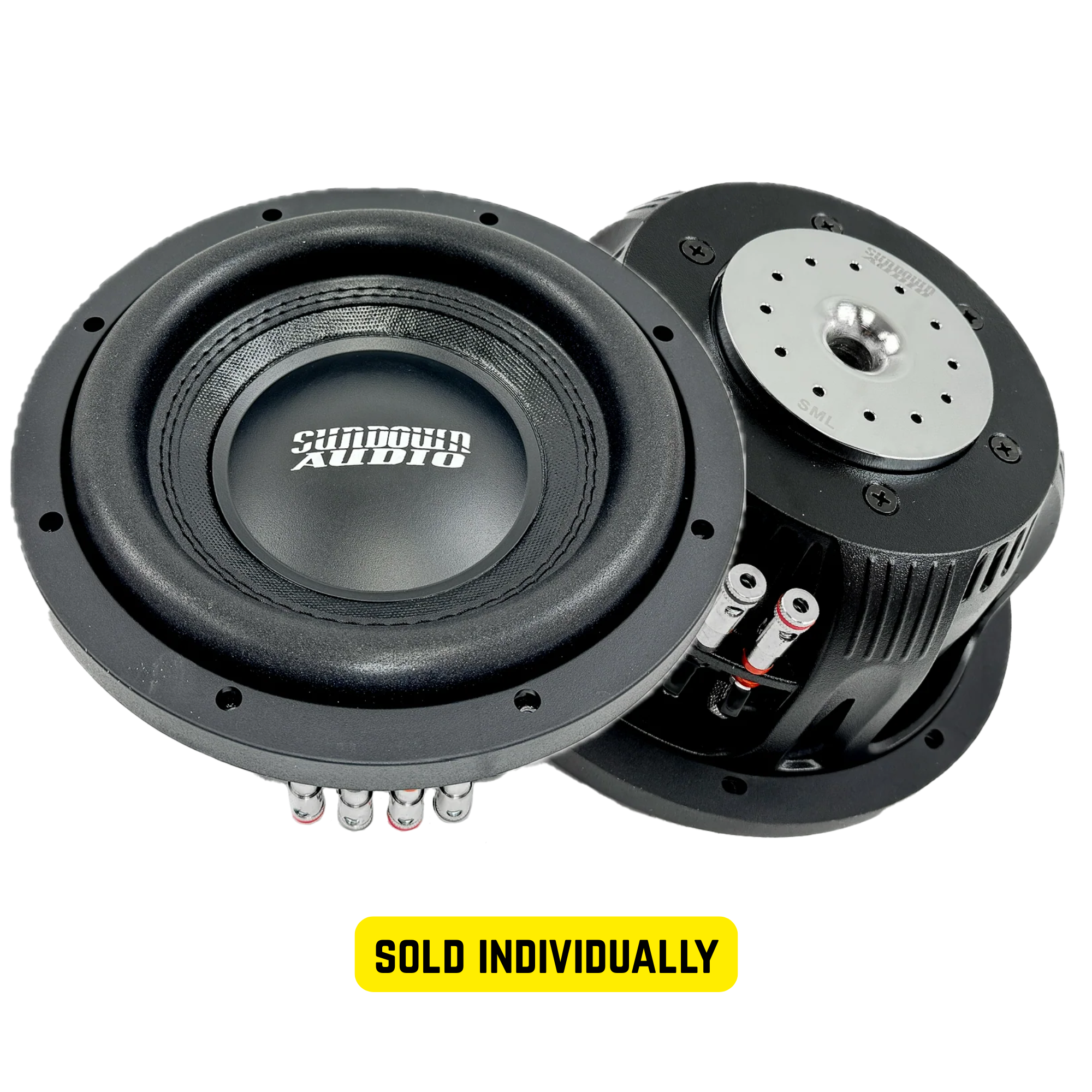

SOLD INDIVIDUALLY
400 Watts RMS/800 Watts Peak
Dual 4 ohm voice coils
Black Aluminum 2.25” voice coil former for superior heat dissipation
High temperature 4-layer copper voice coil wire

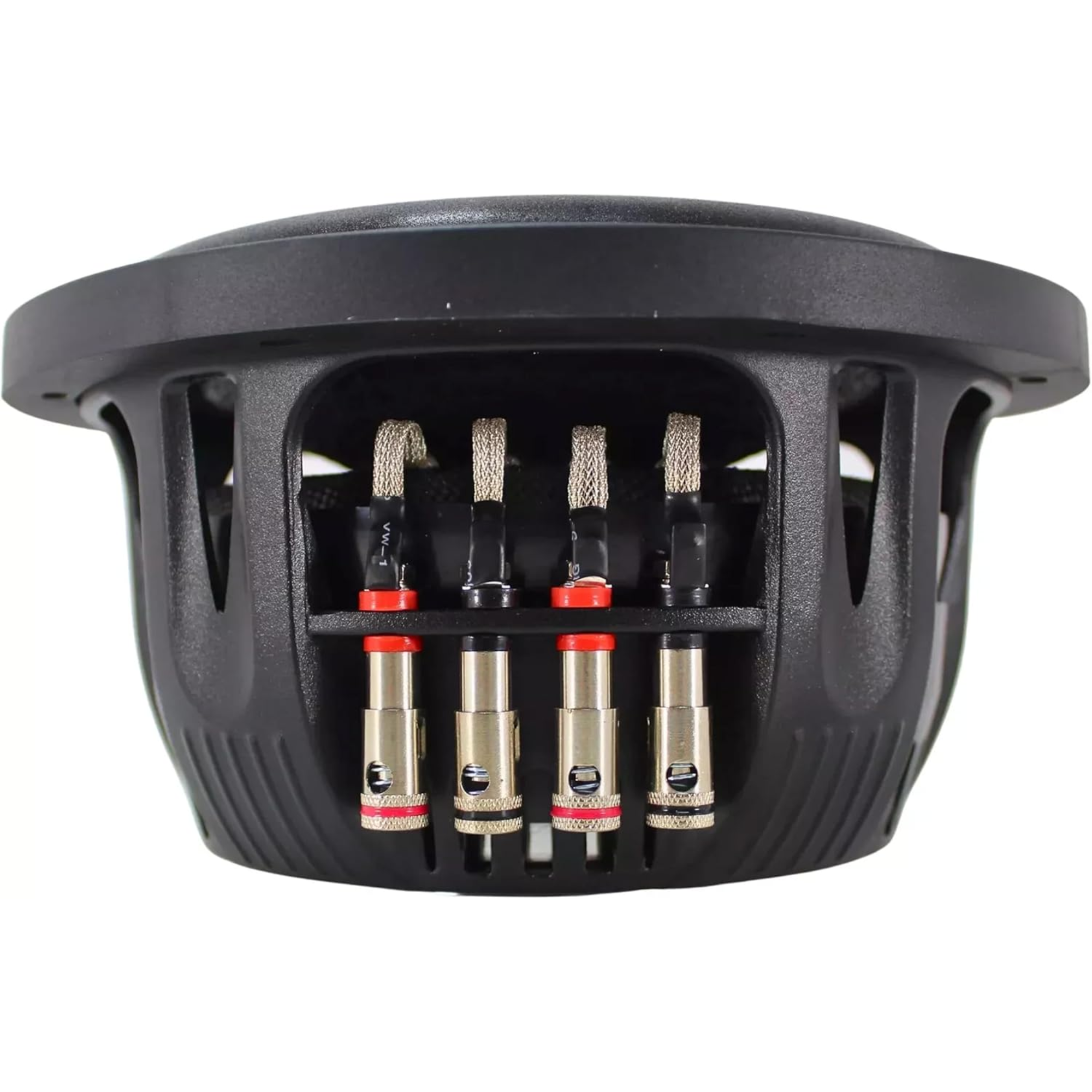

Stitched-on “Mini-XL” tinsel Leads to prevent fatigue and failure

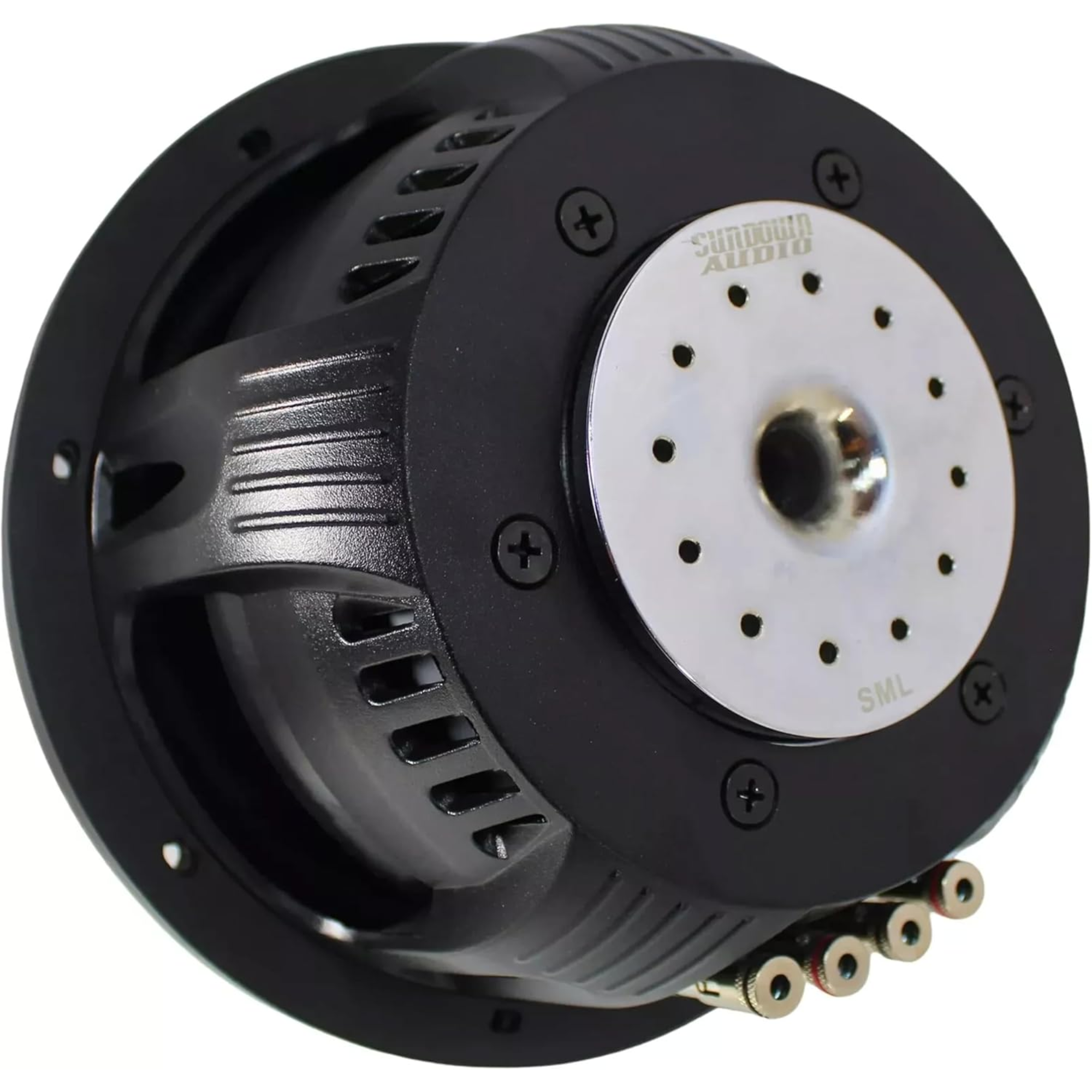

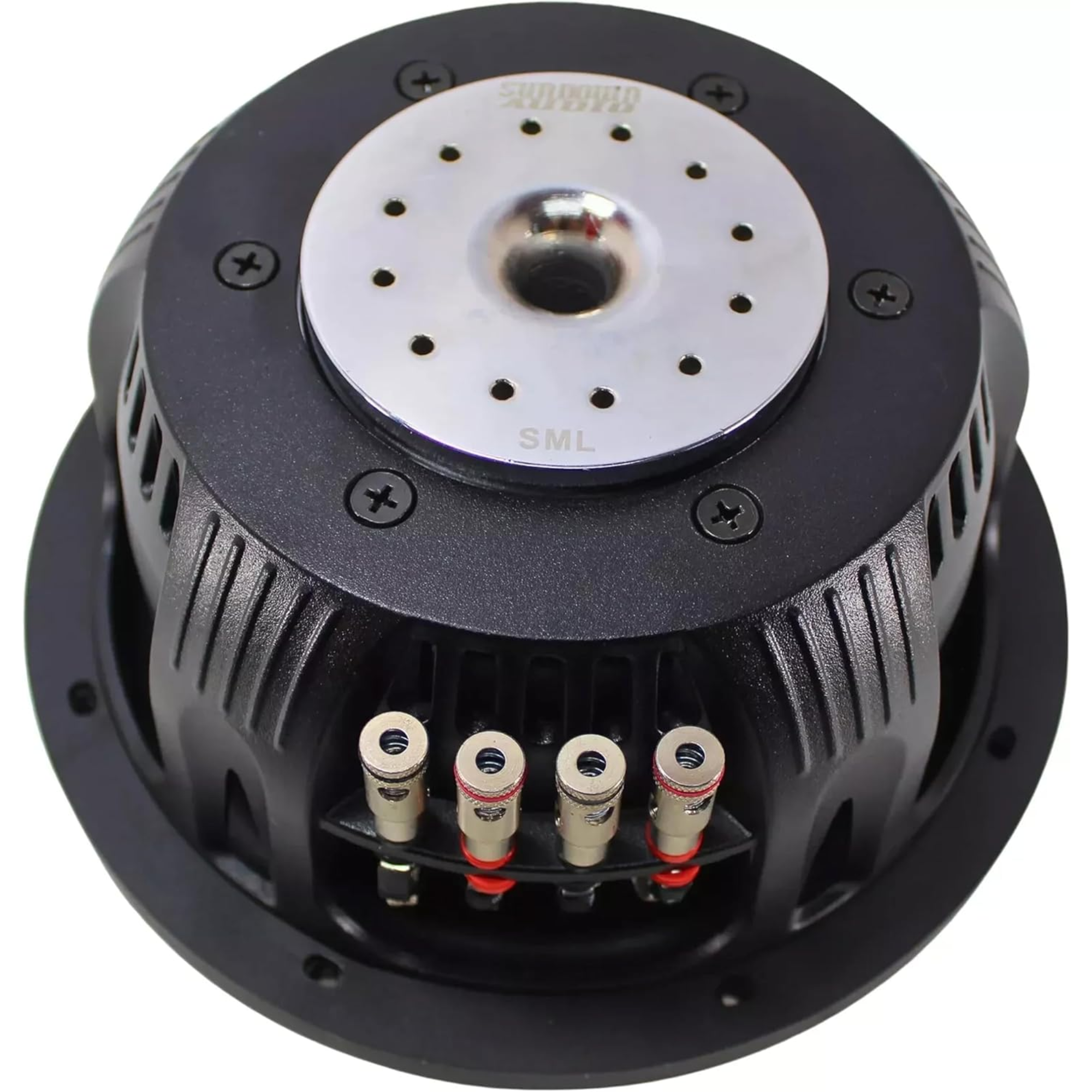

Vented pole-piece and vented magnetic gap
Dual-magnet design for smooth acoustic response
Custom tooled cone shape for reduced mechanical noise over high excursion
Bolt-through motor design to ensure maximum longevity and ruggedness
SPECIFICATIONS
RE (Ohms): 3.65
FS (Hz): 40.038
VAS (L): 8.028
Qes: 0.425
Qms: 2.75
Qts: 0.368
BL (NA): 16.634
Mms (Grams): 128.033
Cms (uM/N): 123.416
Sens (dB @ 1w/1m): 82.8dB
Xmax: 14mm
ENCLOSURE SPECIFICATIONS
Sealed Enclosure: 0.2-0.35 ft^3
Displacement: 0.08cuft
Cutout: 7.65"
Outer Diameter: 8.5"
Mounting Depth: 3.78”
