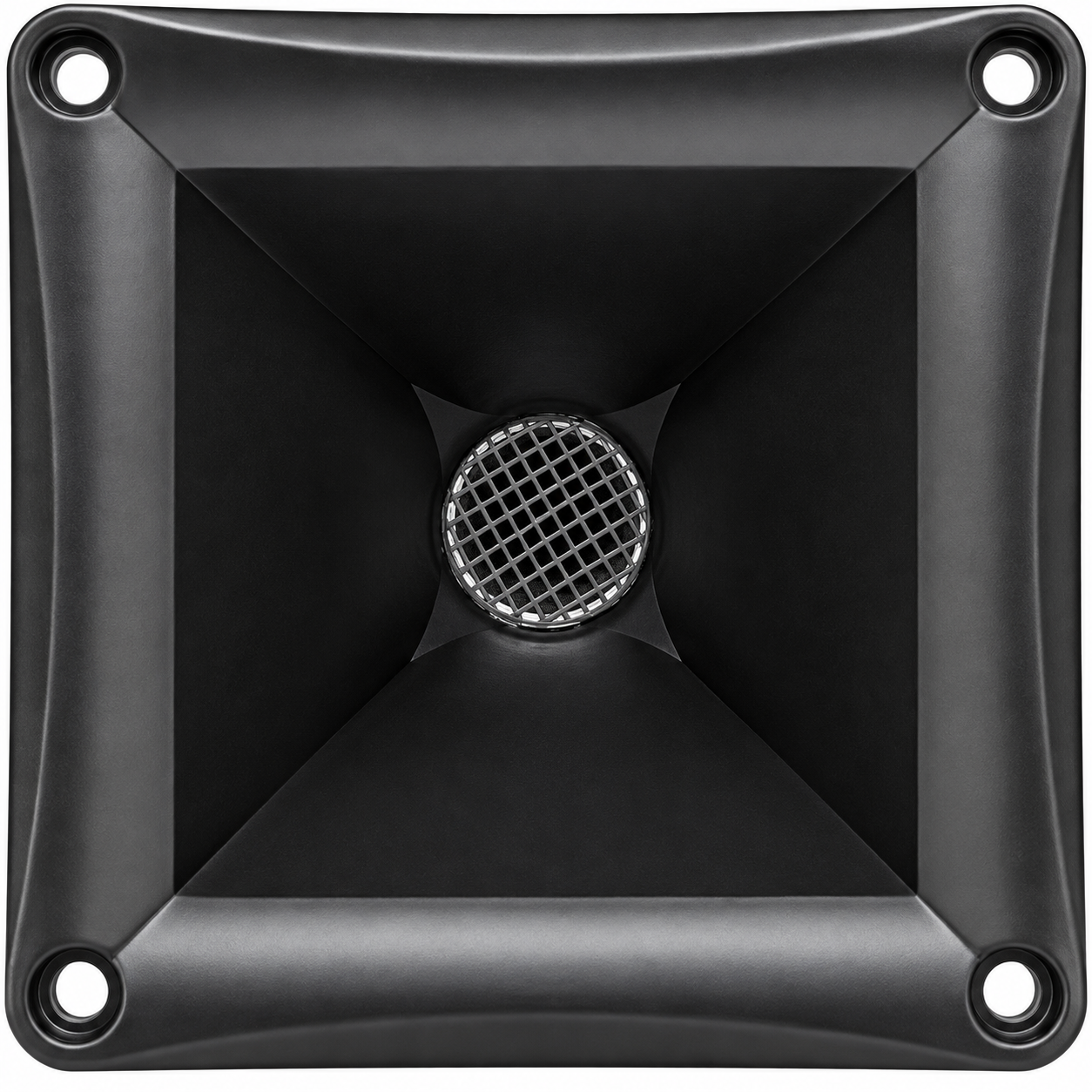

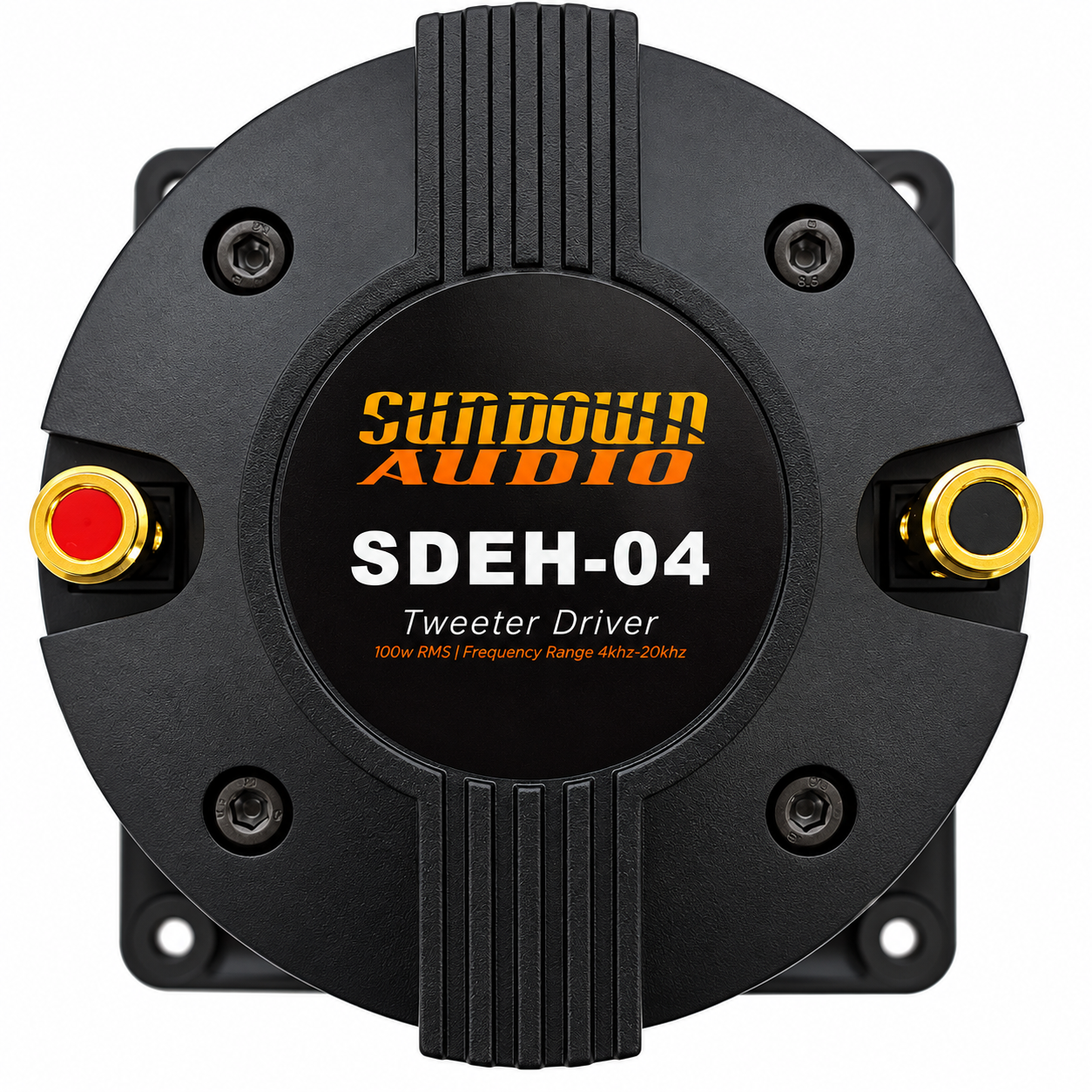

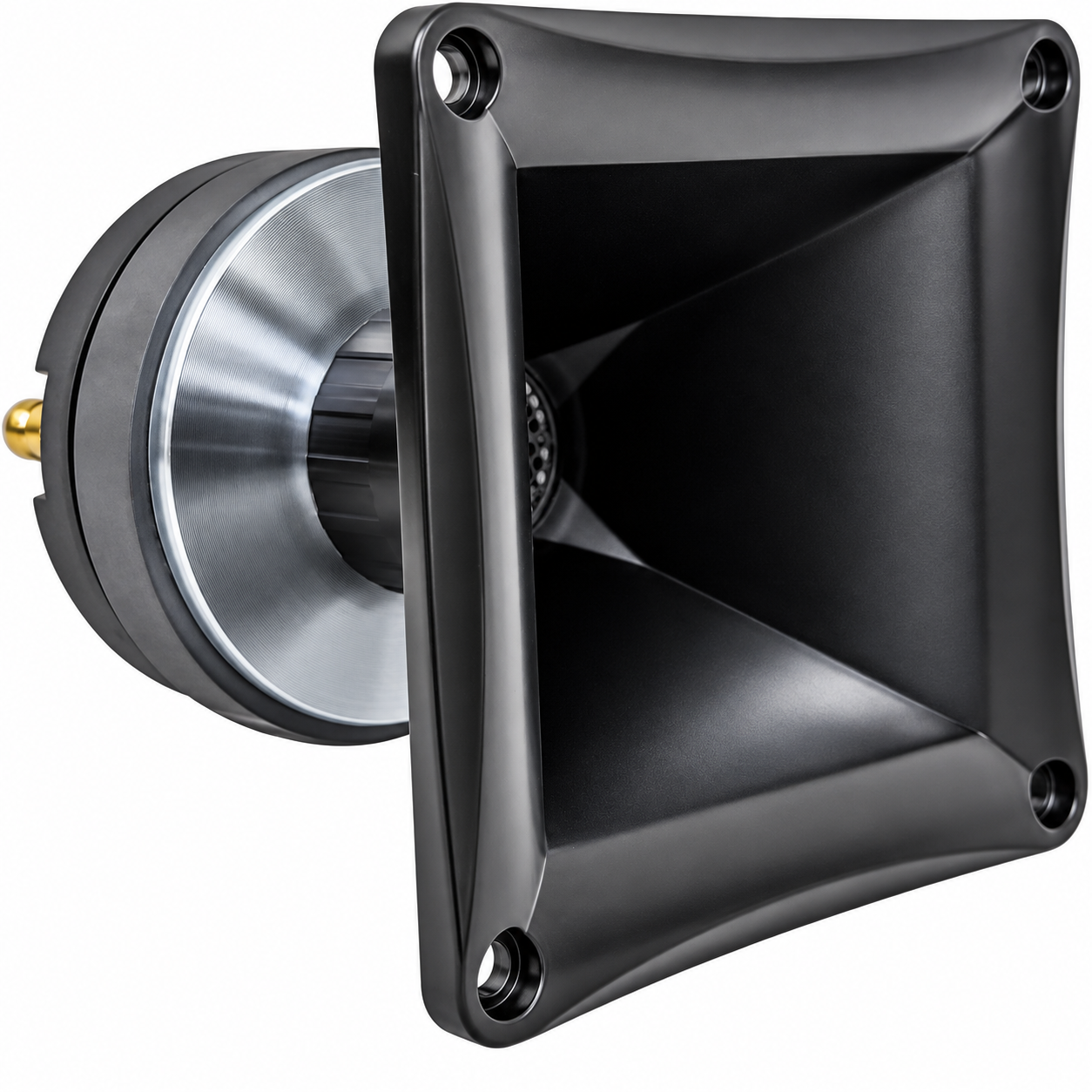

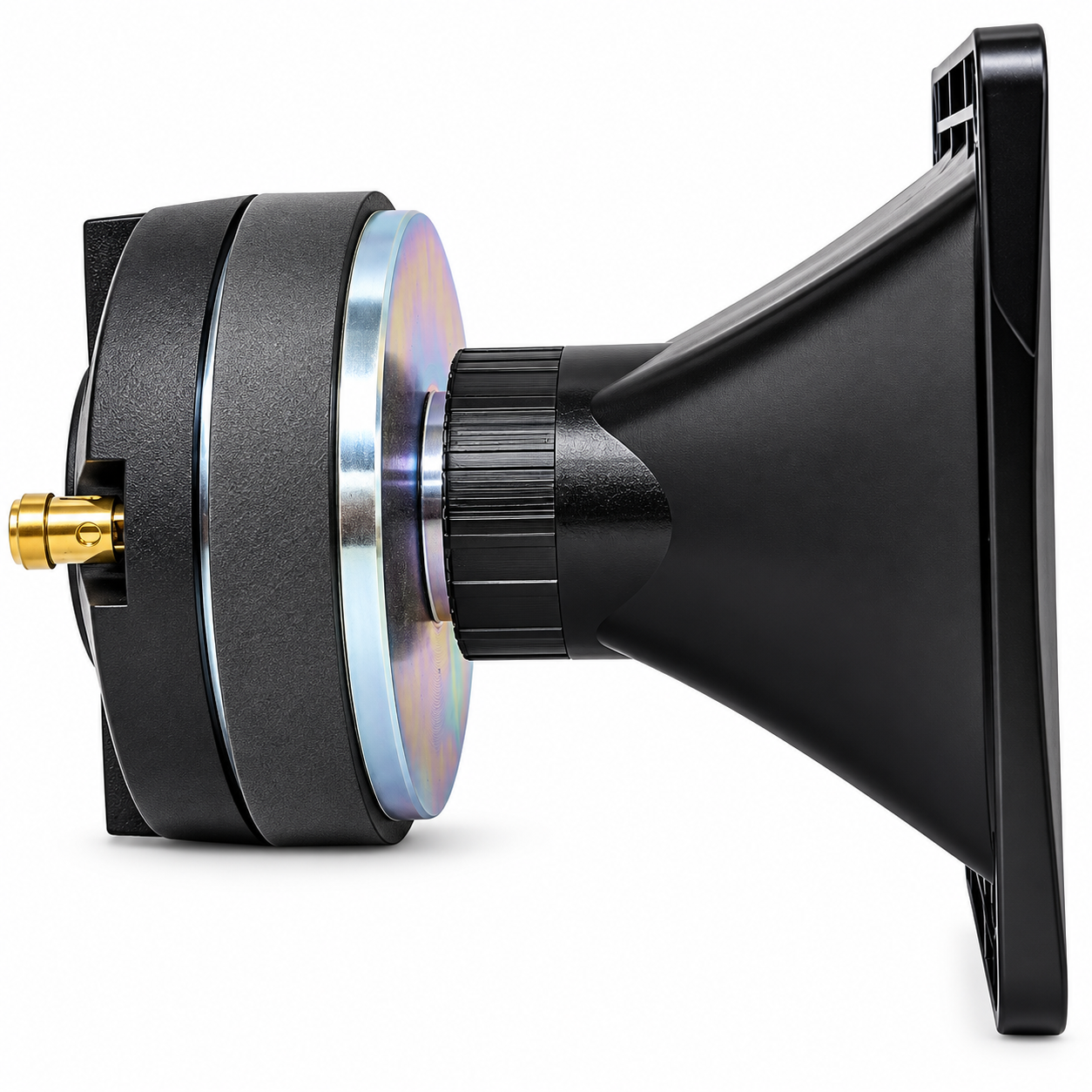

Sundown Audio SDEH-04 4" Horn Driver 100W RMS 4 Ohm Titanium
Sundown Audio SDEH-04
Key Features:
- Product Type: High-Efficiency Compression Horn Driver
- Speaker Size: 4 Inches
- Nominal Impedance: 4 Ohms
- RMS Power Handling: 100 Watts
- Frequency Response: 4,000–20,000 Hz
- Sensitivity: 105 dB
- Magnet Type: Ferrite
- Application: High-Frequency PA and Car Audio Systems
- Quantity: 1 Driver
CONSTRUCTION
- Ferrite magnet motor structure provides magnetic control for high-frequency sound reproduction.
- Compression horn design supports efficient sound projection.
- Compact square-frame construction accommodates compatible horn driver installations.
- Rigid mounting frame provides support during installation.
- Designed for high-output audio applications.
FEATURES
- 4-inch compression horn driver designed for high-efficiency sound reproduction.
- Handles 100 watts RMS with a nominal 4-ohm impedance.
- 105 dB sensitivity supports high sound output.
- Frequency response of 4 kHz to 20 kHz provides high-frequency coverage.
- Ferrite motor structure supports consistent driver performance.
- Designed to project sound with low distortion.
- Suitable for PA systems, stage audio, and high-output car audio installations.
- Sold individually for single-driver replacement or custom audio configurations.
DIMENSIONS
- Overall Frame Dimensions: 4.5 × 4.5 Inches
- Mounting Cutout: 4 × 4 Inches
- Mounting Depth: 4.7 Inches
- Diagonal Measurement: 6.25 Inches
- Motor Diameter: 3.5 Inches
- Nominal Speaker Size: 4 Inches
- Item Weight: Not Manufacturer-Verified
PERFORMANCE
- RMS Power Handling: 100 Watts
- Nominal Impedance: 4 Ohms
- Sensitivity: 105 dB
- Frequency Response: 4,000–20,000 Hz
- DC Resistance (Re): 3.3 Ohms
- Resonant Frequency (Fs): Manufacturer-Listed 1.96 Hz
- Mechanical Q Factor (Qms): 6.67
- Electrical Q Factor (Qes): 15.3
- Total Q Factor (Qts): 4.64
- High-sensitivity design supports strong sound projection.
- Designed for high-frequency reproduction with low distortion.
APPLICATIONS
- Professional PA Speaker Systems
- Stage and Live Sound Applications
- High-Output Car Audio Systems
- Custom Horn Speaker Installations
- High-Frequency Audio Reproduction
- Speaker System Upgrades
- Compatible Horn Driver Replacement
- Custom Audio Projects
INCLUDED
- (1) Sundown Audio SDEH-04 4-Inch, 4-Ohm Compression Horn Driver
- External crossover, amplifier, speaker wiring, and installation accessories are not confirmed as included.
Sold Individually: 1 Horn Driver.
