Rockford Fosgate R168X2 R169X2 Prime Car Audio Speaker Bundle Set of 4
Rockford Fosgate Prime R168X2 + R169X2
Key Features:
- Product Type: 2-Way Coaxial Car Speakers
- Total Speakers: 4
- Configuration: 2 × 6"×8" + 2 × 6"×9"
- Nominal Impedance: 4 Ohms per speaker
- Woofer Cone: Polypropylene
- Surround: Rubber
- Tweeter: 1/2" Silk Dome
- Voice Coil: 1"
- Color: Black.

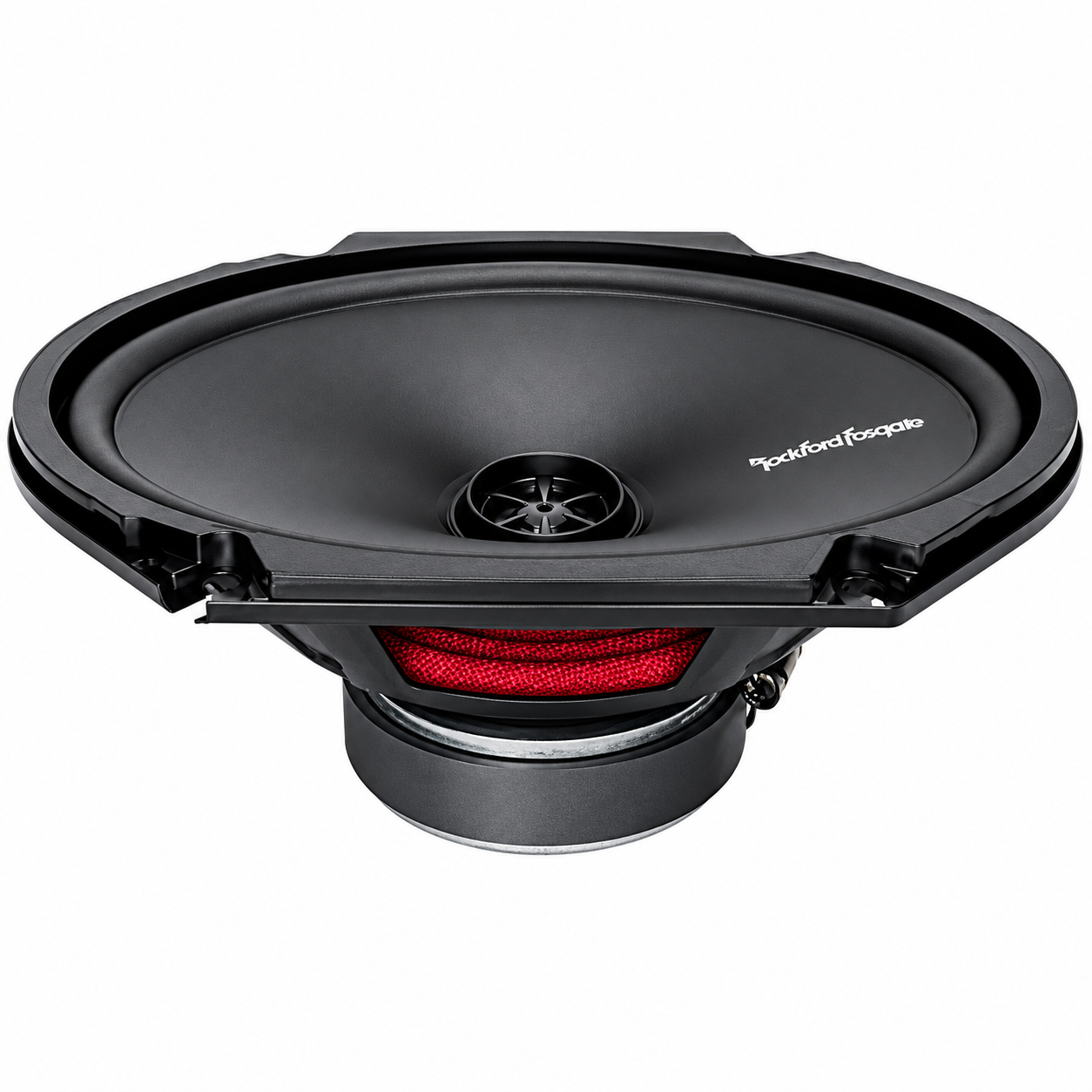

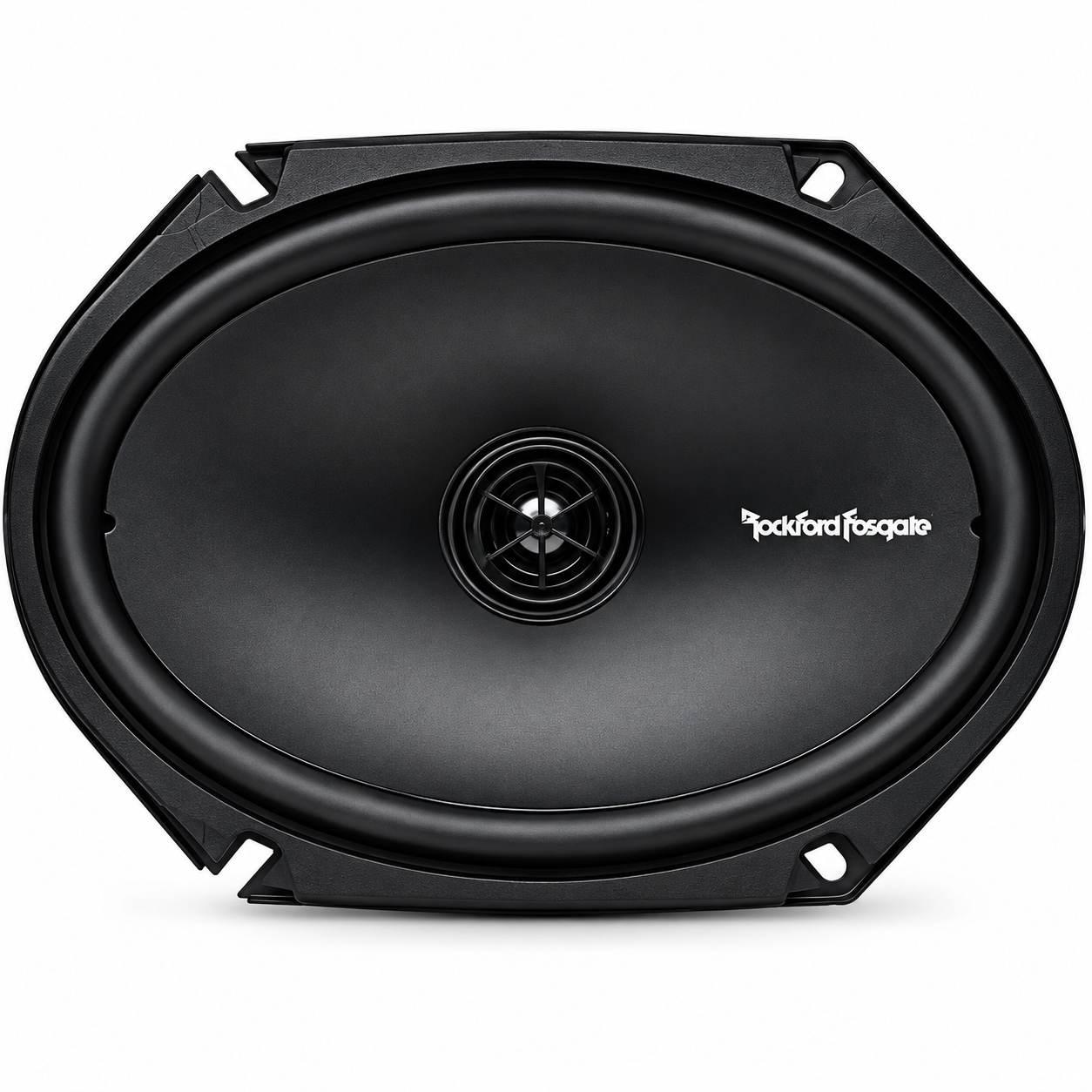

R168X2 – 6"×8" Pair
- Speaker Size: 6" × 8"
- Design: 2-Way Coaxial
- RMS Power: 55W each / 110W per pair
- Peak Power: 110W each / 220W per pair
- Impedance: 4Ω
- Frequency Response: 51 Hz–20 kHz
- Sensitivity: 87 dB (1W/1m)
- Mounting Depth: 2.54"
- Cutout: 5.07" × 7.31"
- Grilles: Not included.

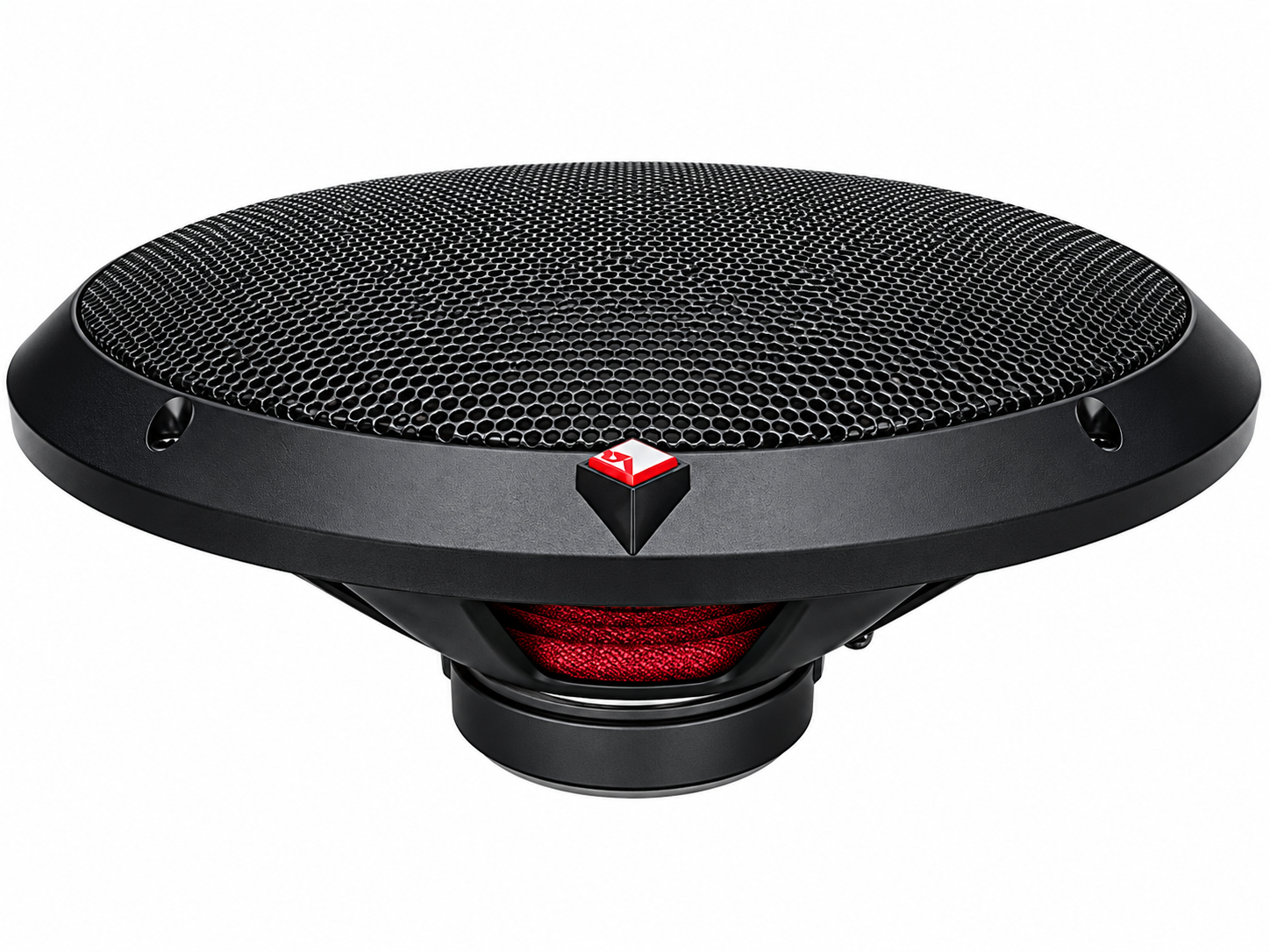

R169X2 – 6"×9" Pair
- Speaker Size: 6" × 9"
- Design: 2-Way Coaxial
- RMS Power: 65W each / 130W per pair
- Peak Power: 130W each / 260W per pair
- Impedance: 4Ω
- Frequency Response: 48 Hz–20 kHz
- Sensitivity: 90 dB (1W/1m)
- Mounting Depth: 2.85"
- Cutout: 5.93" × 8.59"

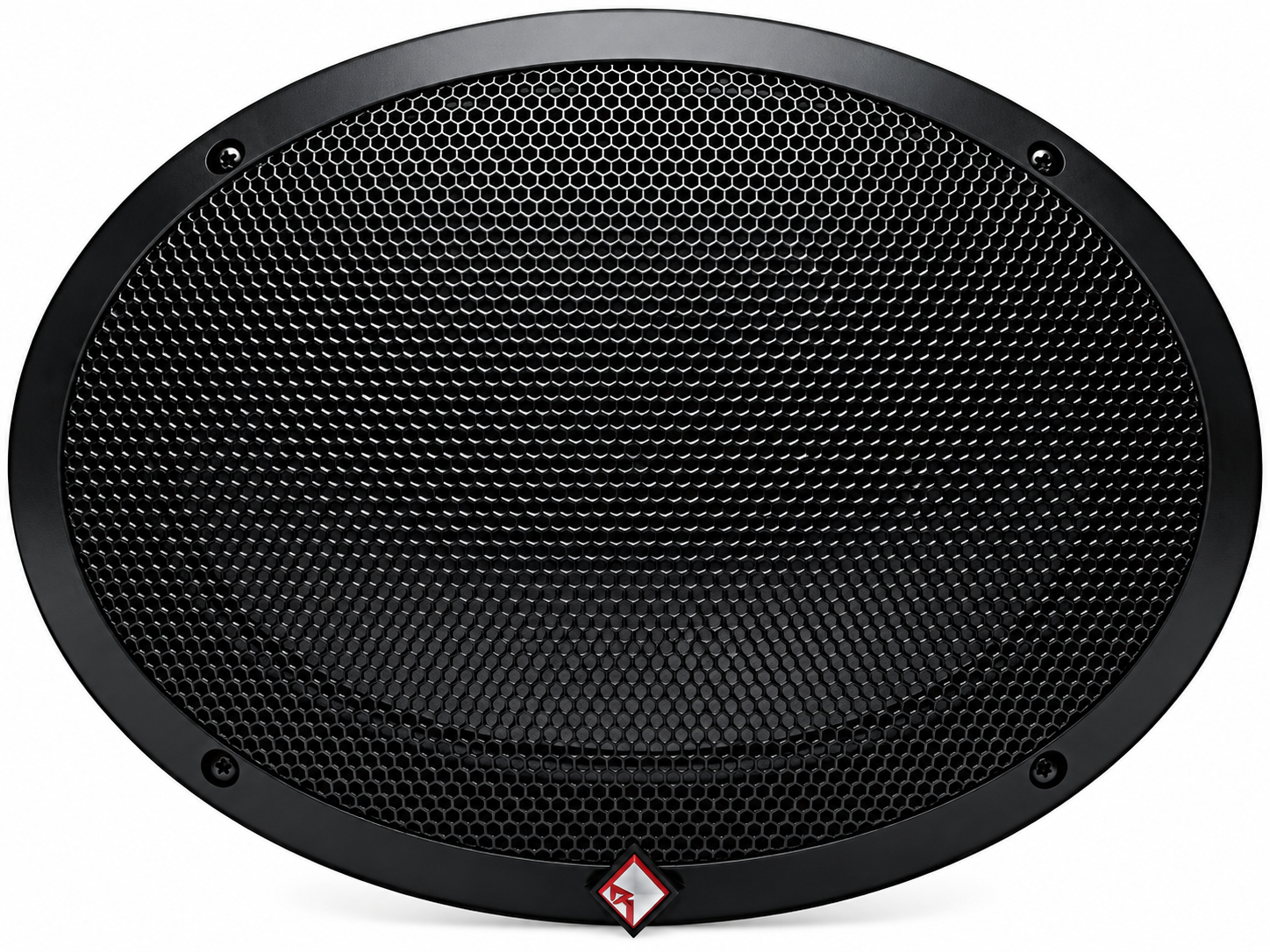

- Grilles: Included.
Construction
- Vacuum-formed polypropylene woofer cones
- Durable rubber surrounds
- Stamped-steel baskets
- Flush-mounted silk-dome tweeters
- Integrated tweeter crossovers
- R169X2 incorporates Rockford Fosgate's VAST (Vertical Attach Surround Technique) and FlexFit/Multi-OEM mounting features.
Features

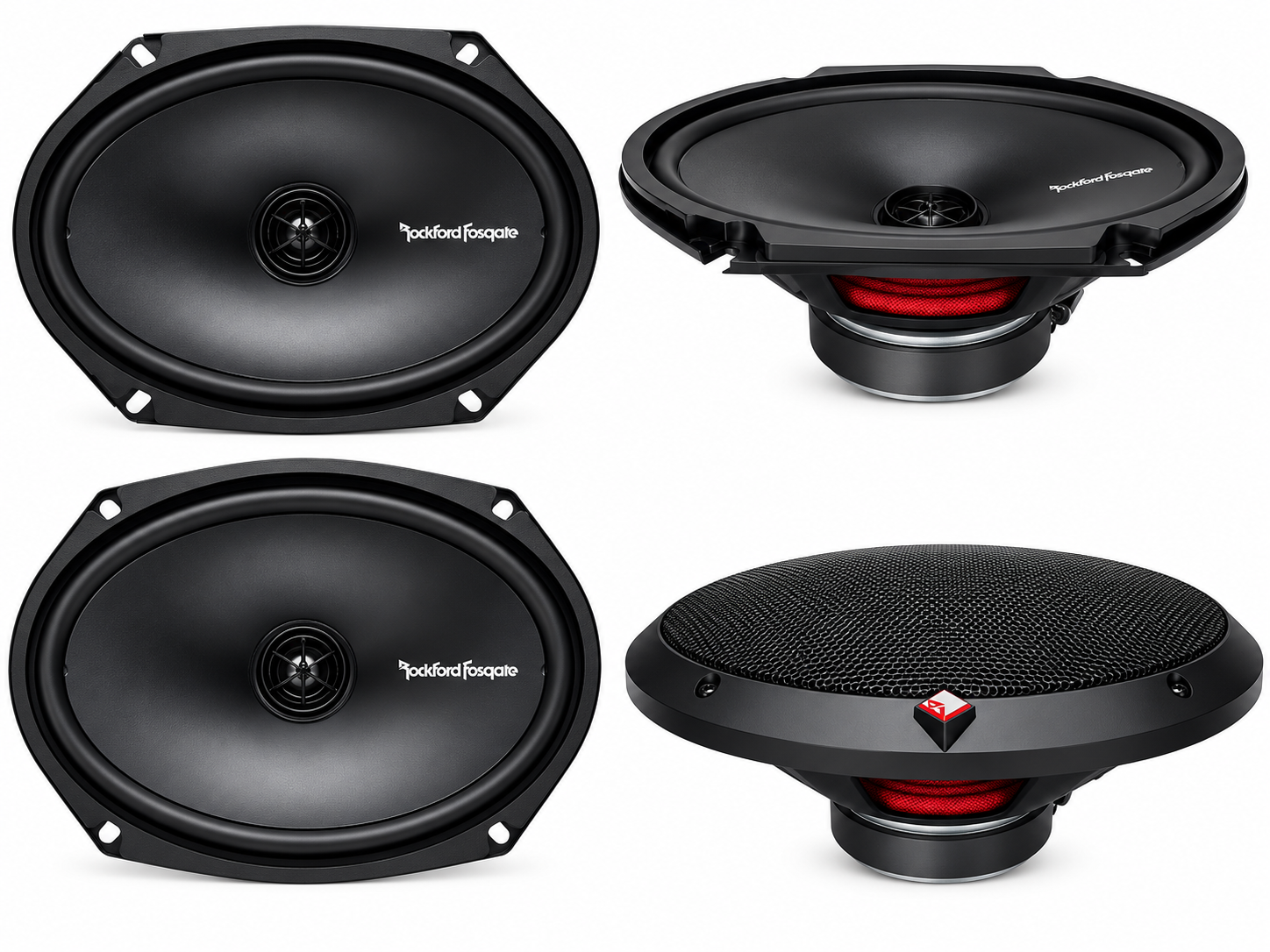

- Complete 4-speaker package
- Two different factory-replacement sizes
- 2-way full-range coaxial design
- Shallow mounting profiles
- CTA/CEA-2031 compliant power ratings
- Designed for use with factory radios, aftermarket head units, or properly matched amplifiers
- R169X2 includes protective speaker grilles; R168X2 does not.
Dimensions
| Specification | R168X2 | R169X2 |
|---|---|---|
| Nominal Size | 6" × 8" | 6" × 9" |
| Mounting Depth | 2.54" | 2.85" |
| Cutout | 5.07" × 7.31" | 5.93" × 8.59" |
| Overall Depth | ~2.91" | ~3.22" |
Rockford Fosgate's dimensional drawings support these mounting dimensions.
Performance
R168X2:
- 55W RMS / 110W peak each
- 110W RMS / 220W peak per pair
- 87 dB sensitivity
- 51 Hz–20 kHz
R169X2:
- 65W RMS / 130W peak each
- 130W RMS / 260W peak per pair
- 90 dB sensitivity
- 48 Hz–20 kHz
Complete 4-speaker bundle: 240W RMS / 480W peak combined, calculated from the individual speaker ratings.
Applications
Suitable for:
- Factory speaker replacement
- Car, truck, SUV, and van audio systems
- Front/rear speaker upgrades
- Factory radios
- Aftermarket stereos
- Properly matched aftermarket amplifiers
Vehicle fitment should be verified by year, make, model, trim, and speaker location.
Included
- 2 × Rockford Fosgate R168X2 6"×8" speakers
- 2 × Rockford Fosgate R169X2 6"×9" speakers
Total: 4 speakers (2 pairs).
