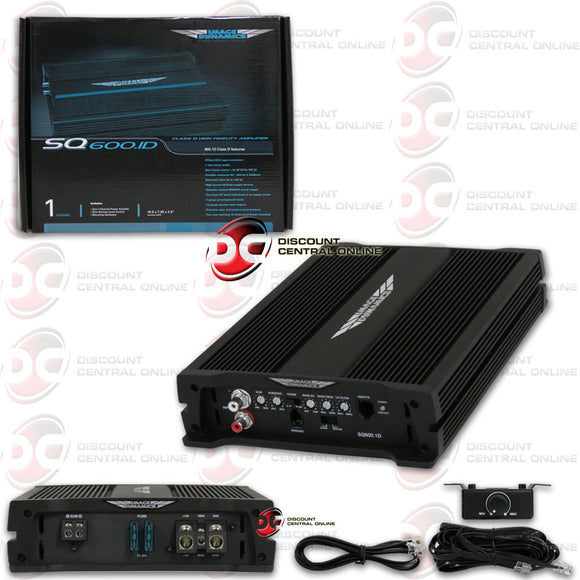

IMAGE DYNAMICS SQ600.1D CLASS D MONOBLOCK CAR AMPLIFIER

IMAGE DYNAMICS SQ600.1D CLASS D MONOBLOCK CAR AMPLIFIER

Image Dynamics

Only 1 left!
  • Car Audio Class-D 1-Ohm Stable 1-Channel Amplifier
  • Model: SQ600.1D SQ Series
  • RMS Power Rating:
  • 4 ohms: 200 watts x 1 channel
  • 2 ohms: 400 watts x 1 channel
  • 1 ohm: 600 watts x 1 channel
  • Total power output: 600 watts
  • Pulse Width Modulated MOSFET power supply
  • Wired remote bass level control included
  • LED power (green) and protect (red) indicators
  • Soft start turn-on
  • Mono channel operation
  • 3-way protection circuitry (thermal, overload, and speaker short protection)
  • Dual speaker terminals simplify the hookup of multiple speakers
  • Heavy duty aluminum alloy heat-sink for extreme heat dissipation
  • Channels: 1 CH
  • Rated Power: 14.4 VDC
  • Frequency Response: 10Hz ~ 300Hz +/- .5 dB
  • THD + Noise: <0.1 %
  • S/N Ratio: >95 dB
  • Input sensitivity: 250mV ~ 10.0V RMS
  • Fuse requirement: 60 amps
  • Dimensions (LxWxH): 10.5 x 7.25 x 2.0"
