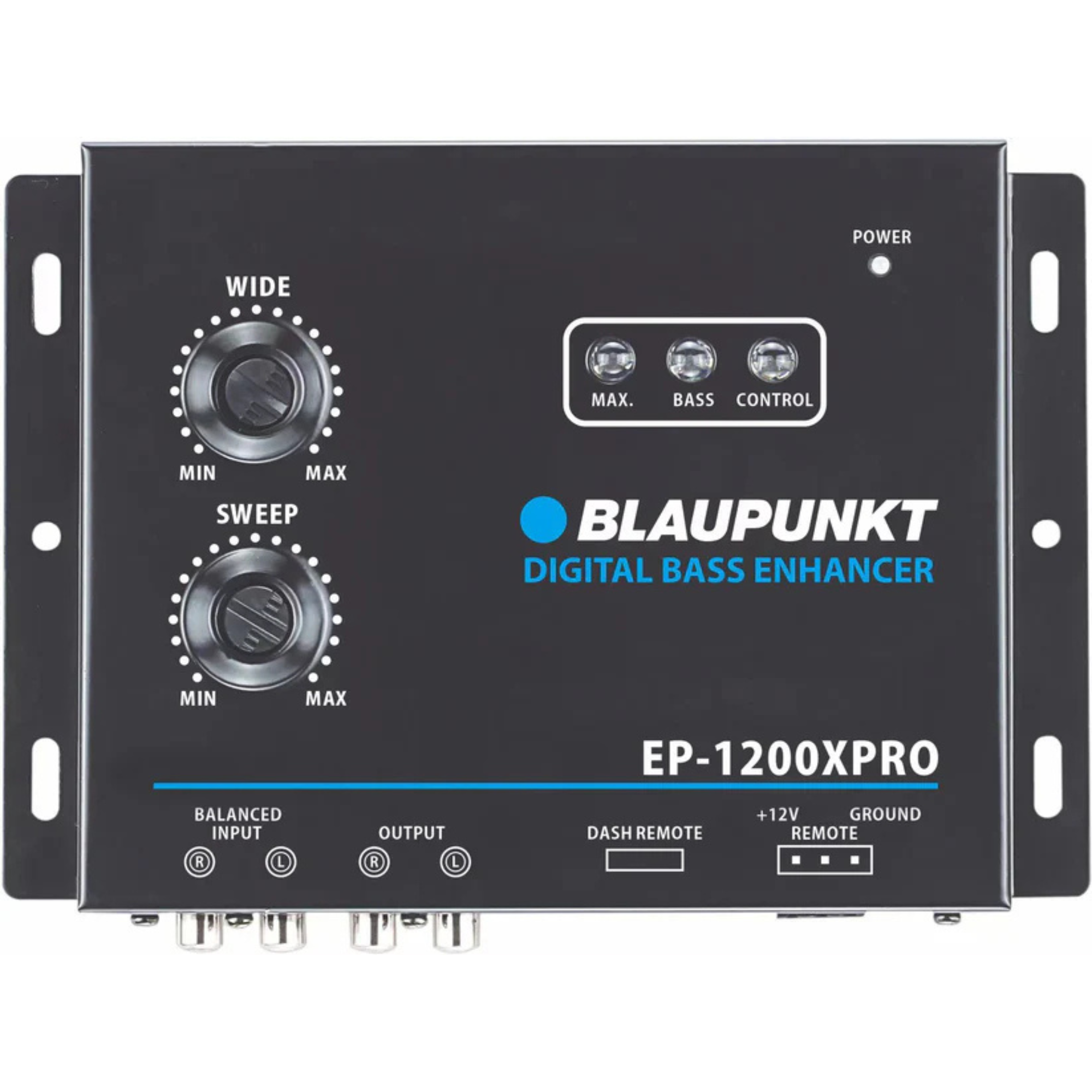

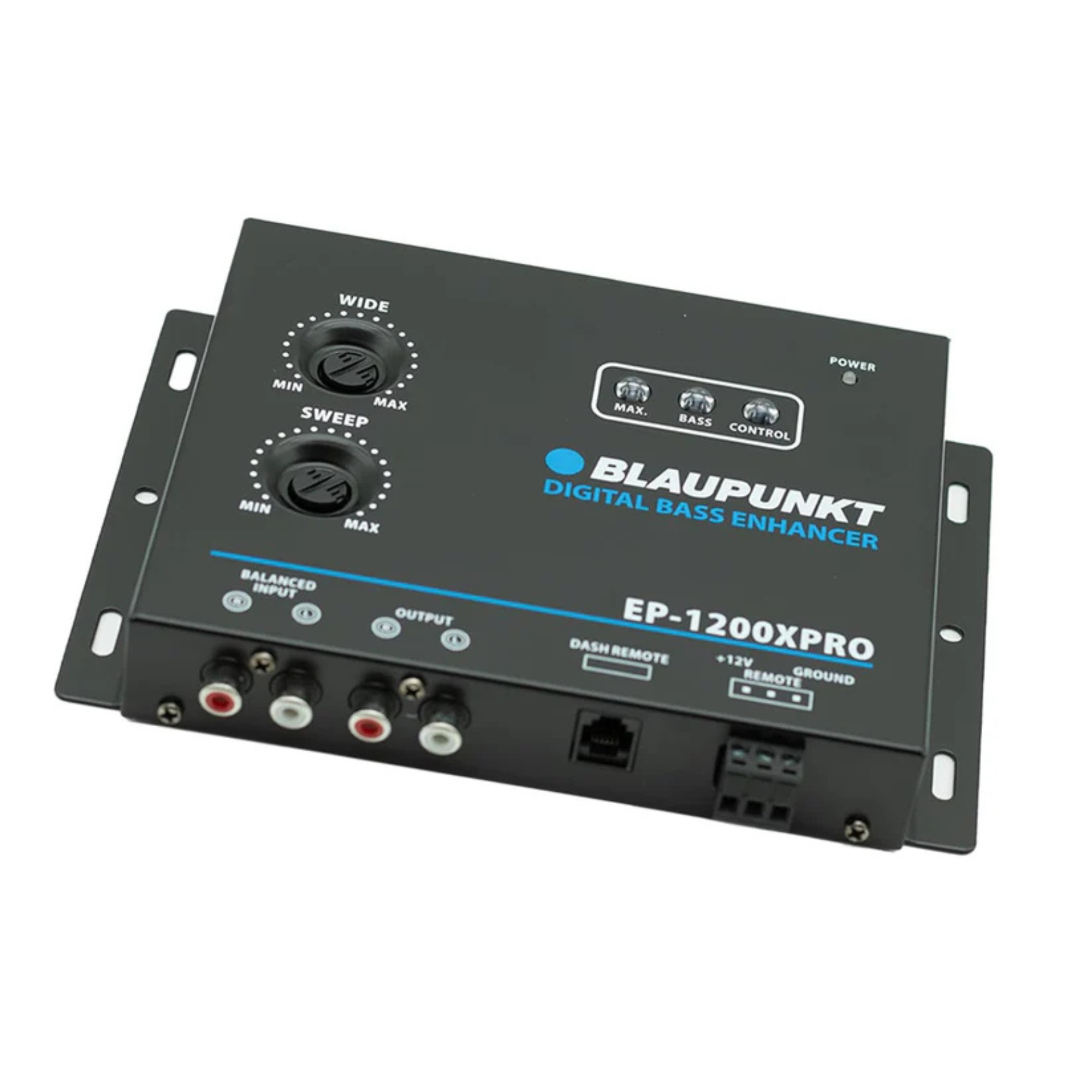

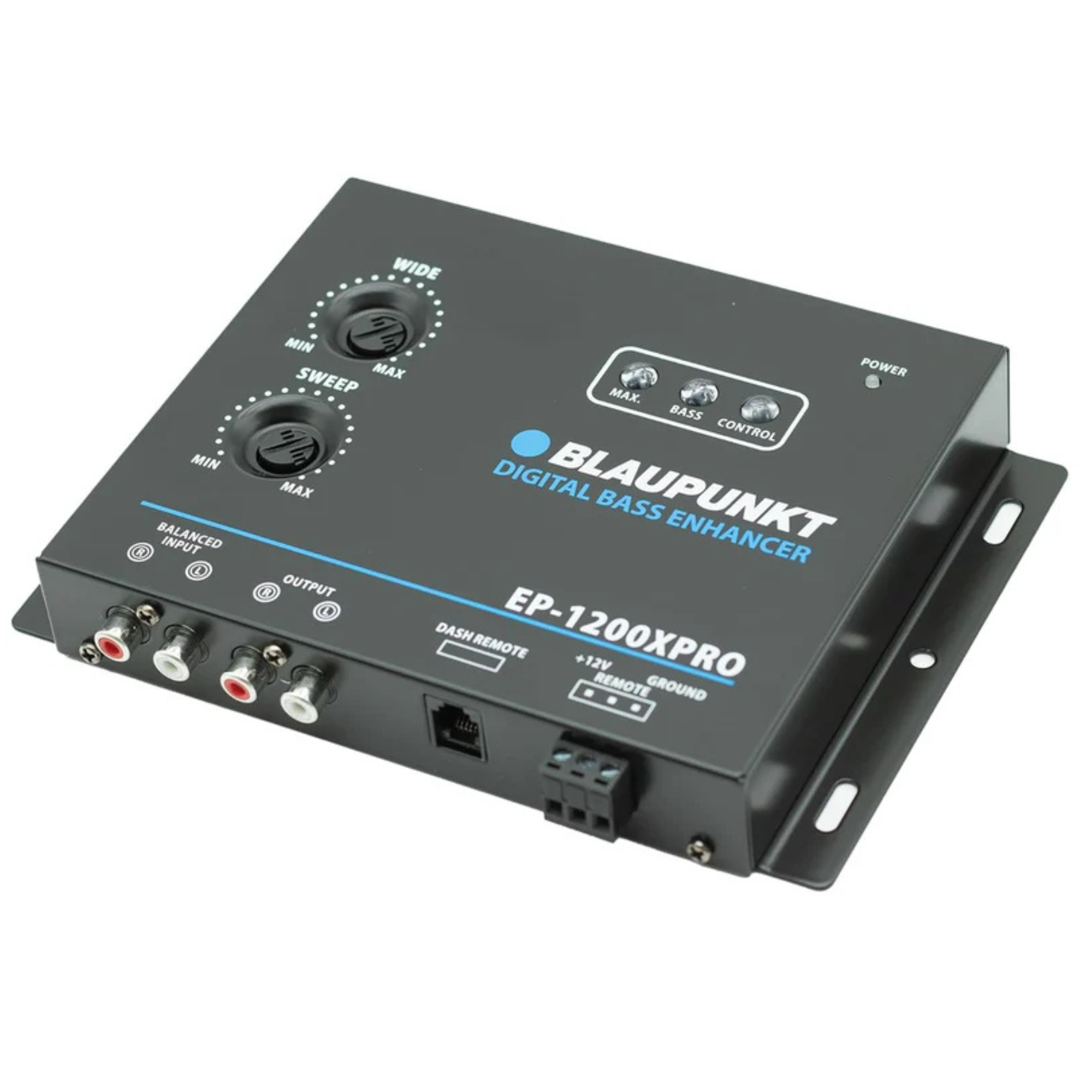

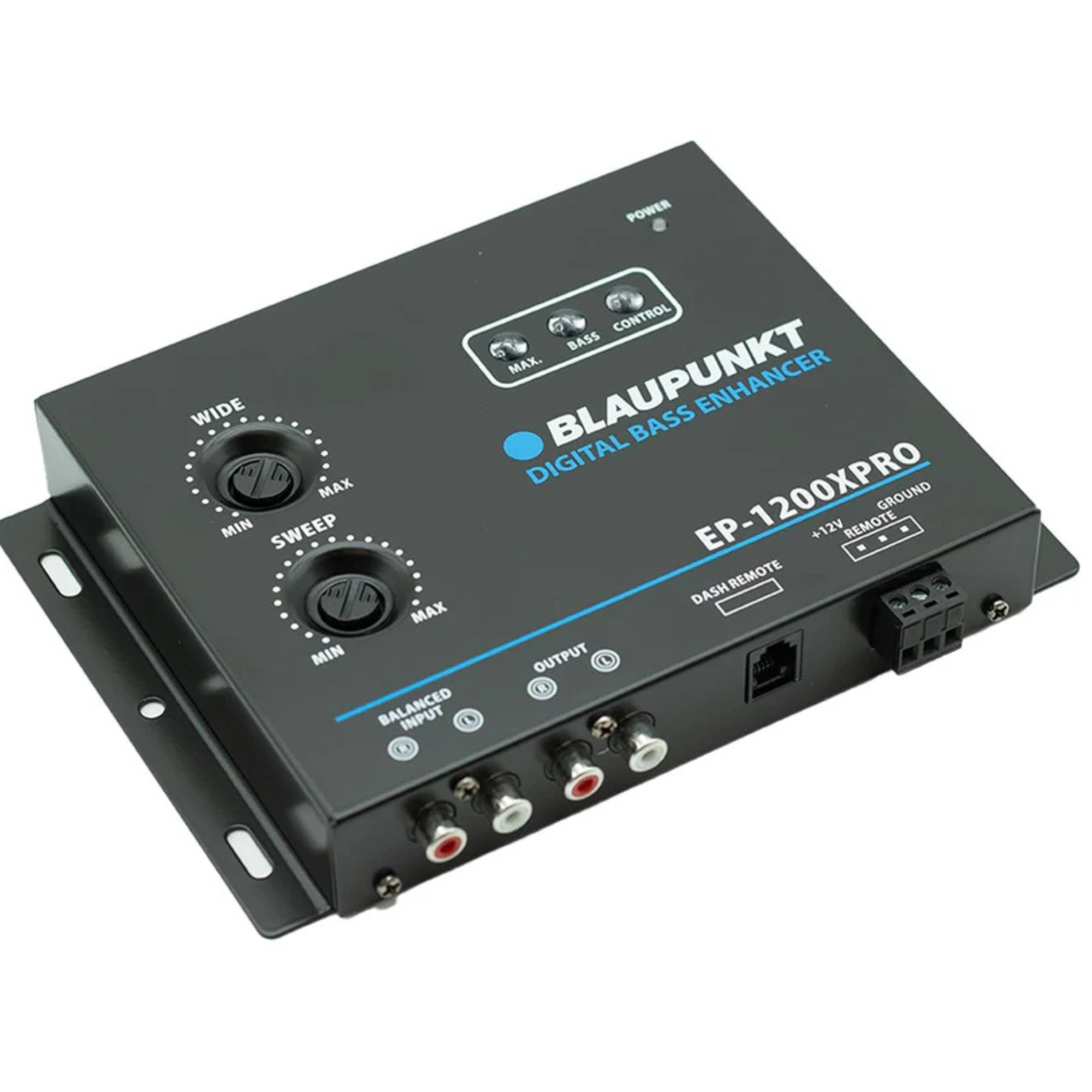

Blaupunkt EP-1200XPRO Digital Bass Enhancer Processor w/ Remote Control
- Product Type: Digital Bass Enhancer / Audio Processor
-
Application:
- Car audio systems
- Bass restoration & enhancement
-
System Type:
- Digital bass restoration processor (line driver / signal processor)
-
Audio Inputs:
- RCA low-level inputs (analog)
-
Audio Outputs:
- RCA outputs (to amplifier)
- Maximum Input Level: 15V RMS
- Maximum Output Level: 13.5V peak
- Frequency Response: 10Hz – 100kHz
- Signal-to-Noise Ratio: ~130 dB
- Total Harmonic Distortion (THD): 0.003%
- Input Impedance: 10K Ohms
- Output Impedance: 150 Ohms
-
Power Supply:
- High headroom PWM power supply
- Power Consumption: ~150 mA
- Recommended Fuse: 1 Amp
-
Dimensions (Item):
- ~7.5 x 5.2 x 1.1 inches
- Color: Black
