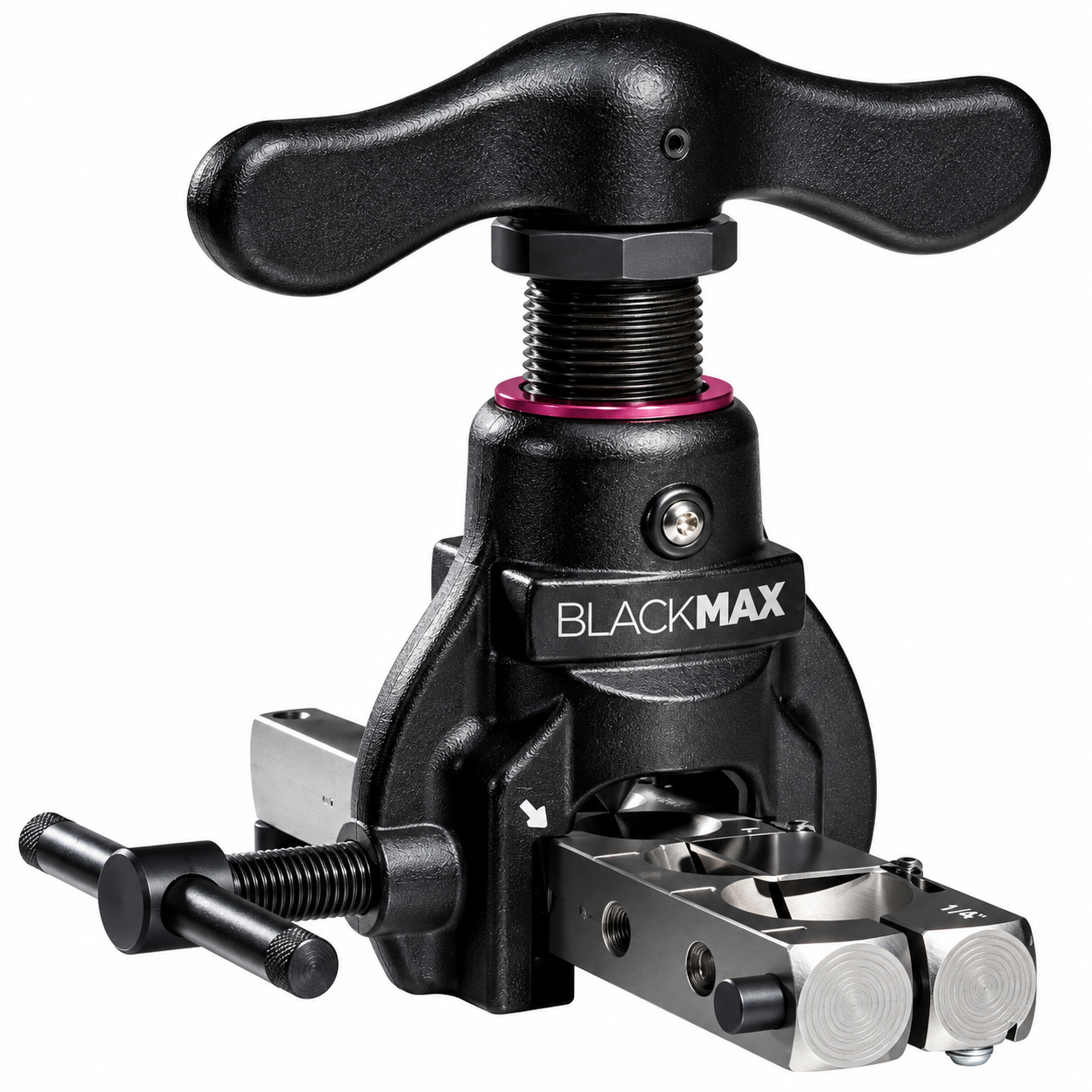

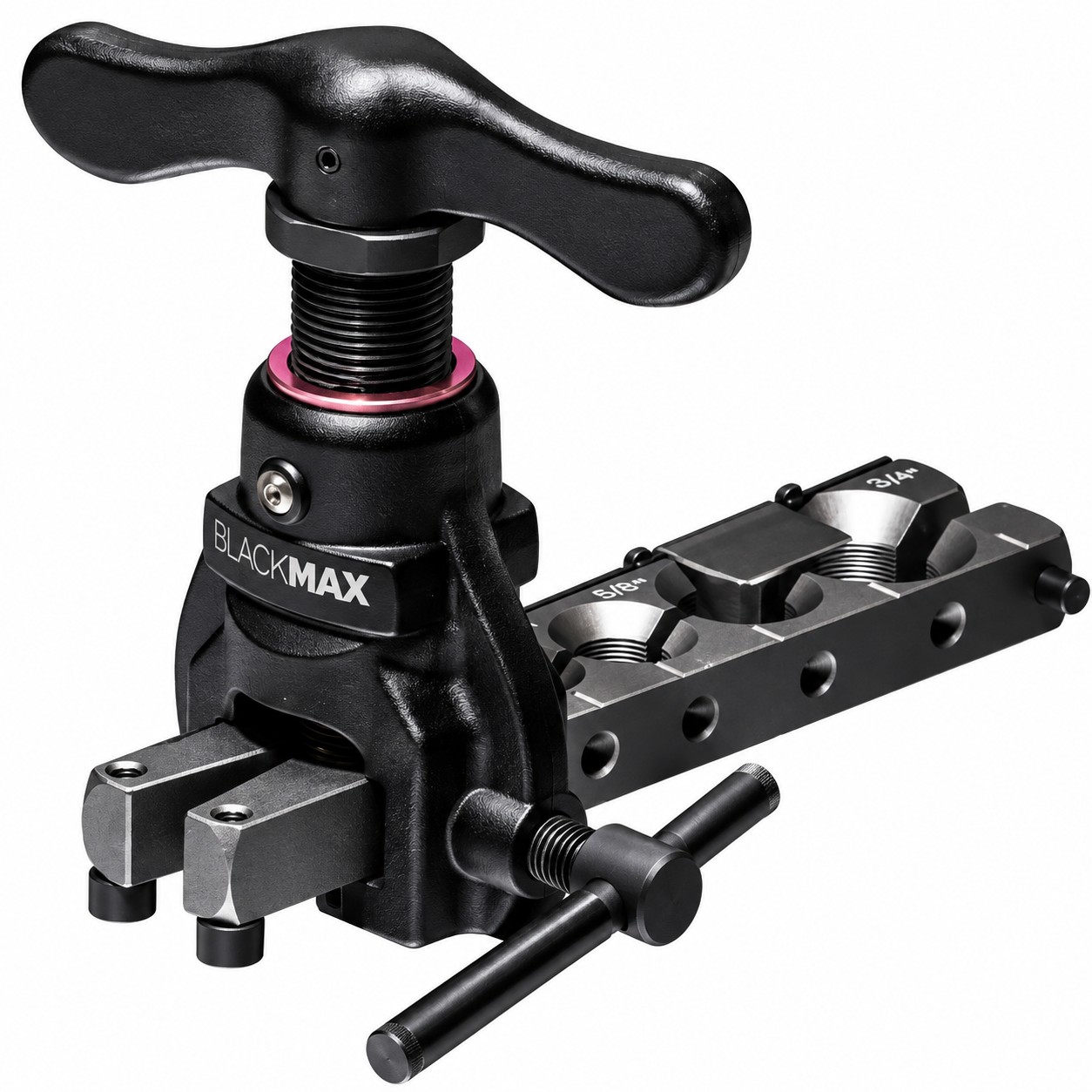

BLACKMAX BFT850 R-410A Flaring Tool Clutch-Type Eccentric Design
BLACKMAX BFT850 R-410A Flaring Tool Clutch-Type Eccentric Design
BLACKMAX BFT850 R-410A Flaring Tool Clutch-Type Eccentric Design

BLACKMAX BFT850 R-410A Flaring Tool Clutch-Type Eccentric Design

BlackMAX

Only 4 left!

BLACKMAX / CPS Products BFT850
Key Features:

  • Product Type: Clutch-Type Eccentric Flaring Tool
  • Sizing System: Imperial
  • Operation: Manual
  • Flare Angle: 45°
  • Tube Compatibility: Soft copper and aluminum tubing
  • Tube O.D. Sizes: 3/16", 1/4", 5/16", 3/8", 1/2", 5/8", 3/4"
  • Number of Positions: 7
  • Body Material: Cast and precision-machined aluminum with select steel components
  • Clutch: Internal clutch
  • Tube Alignment: Built-in slide gauge
  • Application: HVAC/R and refrigeration tubing, including R-410A applications

Construction

  • Lightweight aluminum body
  • Approximately 50% lighter than comparable steel designs
  • Rugged steel components in high-stress areas
  • Eccentric flaring cone
  • Seven-position indexing/flaring bar
  • Internal clutch mechanism
  • Built-in tube-height slide gauge
  • Compact professional design
  • Supplied with a rugged carrying/storage case.

Features

  • Creates precise 45° flared tube ends
  • Internal clutch indicates when the flare is complete, helping prevent over-flaring
  • Seven quick-change tube-size positions
  • Built-in slide gauge helps establish correct tube height before flaring
  • Designed for soft copper and aluminum tubing
  • Lightweight design reduces the bulk associated with traditional steel flaring tools
  • Suitable for professional HVAC/R installation and service work.

Dimensions

CPS's main U.S. product page does not publish verified overall dimensions or net tool weight for the BFT850. One industrial distributor specifies approximately 8 in overall length, while CPS Europe lists 25 × 13 × 26 cm and 2 kg, which appears more consistent with packaged/case measurements than the bare tool. For marketplace accuracy, I would not use those European values as actual product dimensions or net weight without physically measuring the item.

Performance

  • Flare Type: 45° eccentric
  • Clutch Type: Yes
  • Supported O.D.: 3/16" through 3/4"
  • Eccentric cone rotates around the tubing to form a controlled flare
  • Internal clutch signals completion of the flare
  • Designed to produce consistent flares suitable for HVAC/R tubing connections.

Applications

Suitable for:

  • HVAC installation and service
  • Air-conditioning systems
  • Refrigeration systems
  • R-410A system installation/service
  • Soft copper tubing
  • Aluminum tubing
  • Refrigerant line flare connections

Included

  • 1 × BLACKMAX BFT850 Imperial Eccentric Flaring Tool

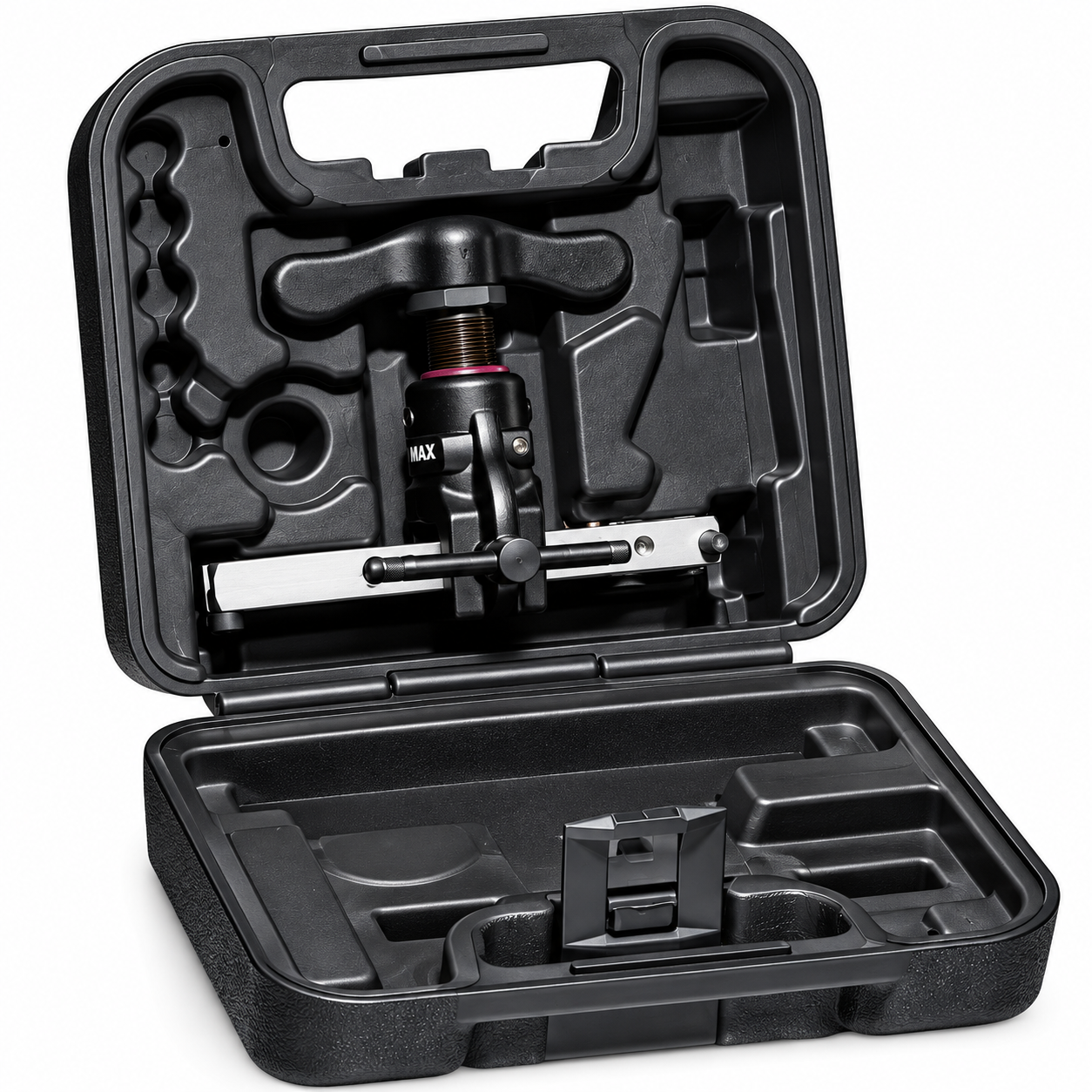

  • 1 × Rugged Carrying/Storage Case
