Audiopipe APHF-3000D-H1 3000W Full Range Class D Mono Amplifier 1 Ohm
• Product Type: Full-Range Monoblock Amplifier
• Amplifier Class: Class D MOSFET
• Channels: 1 (Mono)
• Full Bridge Technology (BTL): Yes
• RMS Power @ 4 Ohms (14.4V): 890W × 1
• RMS Power @ 2 Ohms (14.4V): 1,750W × 1
• RMS Power @ 1 Ohm (14.4V): 3,000W × 1
• Stable Impedance: 1 Ohm
• Frequency Response: 10 Hz – 20 kHz
• Signal-to-Noise Ratio: ≥85 dB
• Input Sensitivity: 0.25V – 4V
• High-Pass Filter: 10 Hz – 80 Hz (12 dB/Octave)
• Low-Pass Filter: 80 Hz – 20 kHz (12 dB/Octave)
• Bass Boost: 0–12 dB (35–90 Hz)

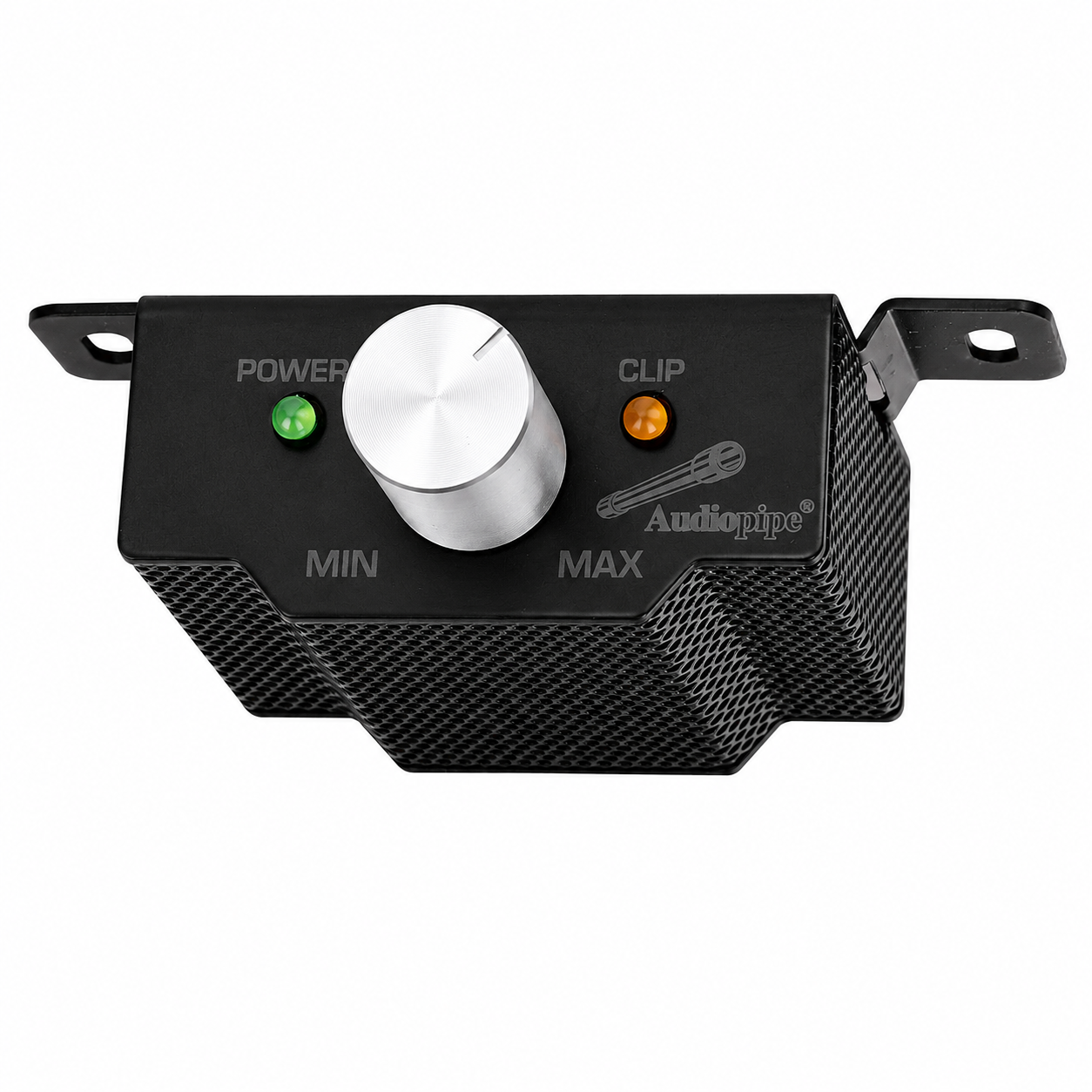

• Remote Bass Control: Included (with Clip LED)
• Protection System: Overload, Overheat, Under-Voltage (9V), Over-Voltage (16V)
• Chassis Material: Aluminum Heat Sink
• Dimensions: 7.4" × 9.0" × 2.9" (189 × 229 × 73 mm)
• Application: Car Audio Subwoofer & Full-Range Speaker Systems
• Country/Region of Manufacture: China
Package Includes
• 1 × Audiopipe APHF-3000D-H1 Full Range Class D MOSFET Amplifier
• 1 × Remote Bass Level Control Knob
• Mounting Hardware
• User Manual
