Audiopipe APHC-4550 3.5" Compression Driver ABS Horn Combo Car Audio Tweeter

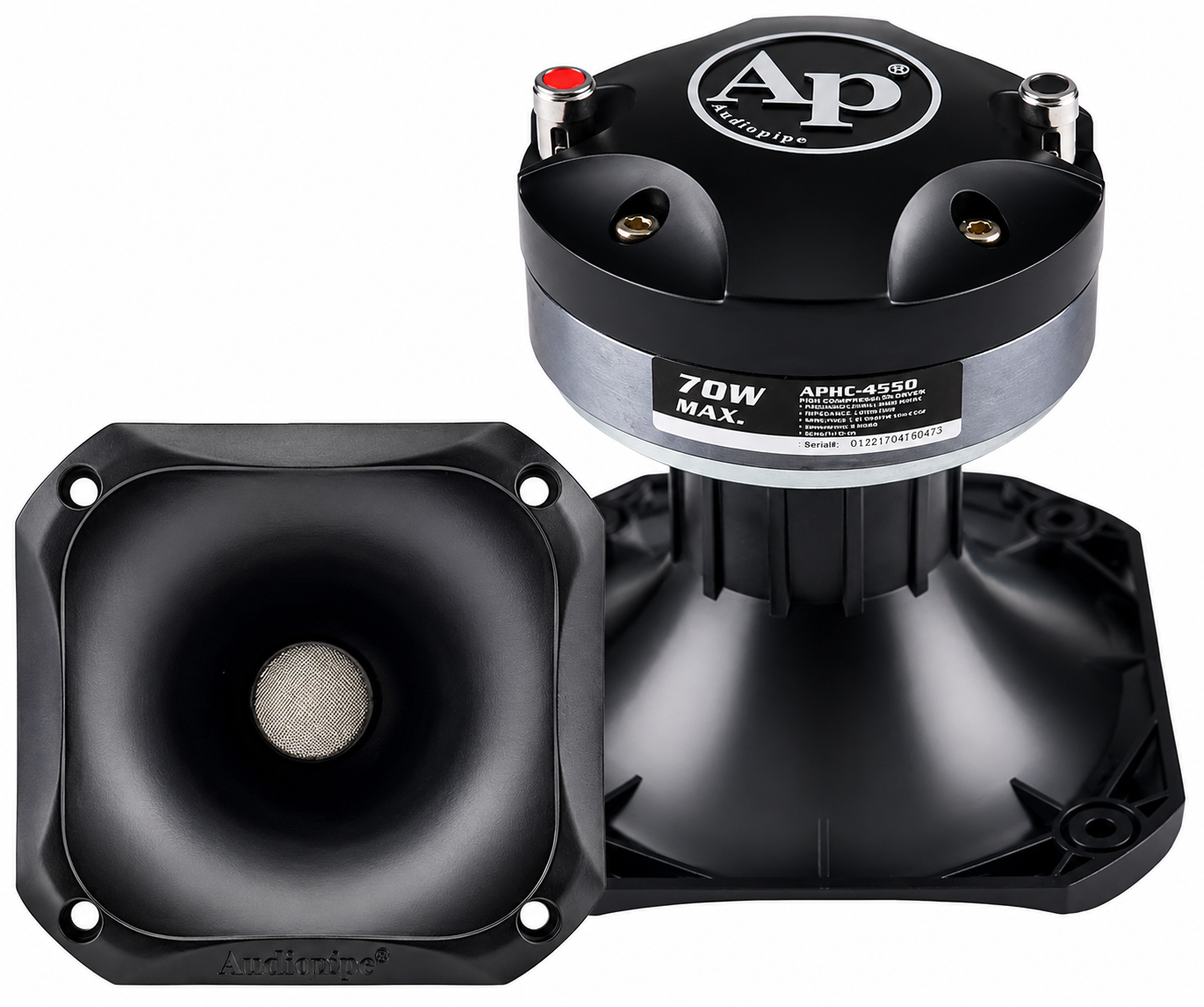

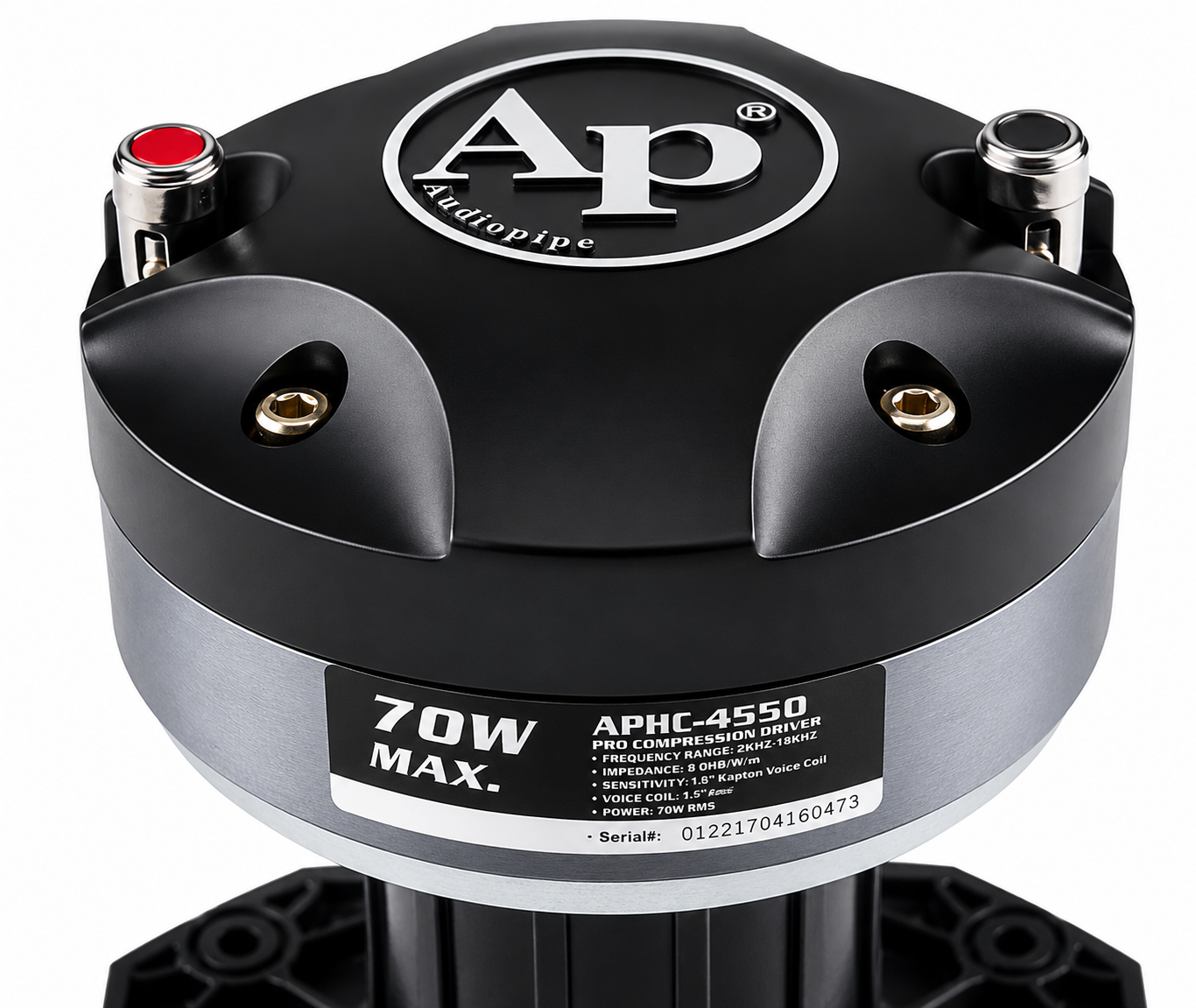

AudioPipe APHC-4550 Compression Driver with ABS Horn
Model: APHC450
Key Features:
- Product Type: Compression Driver with ABS Horn
- Driver Size: 3.5 in.
- Horn Material: ABS Plastic
- Diaphragm Material: Titanium
- Voice Coil: 1.3 in. High-Temperature Kapton
- Peak Power: 70 Watts (P.M.P.O.)
- RMS Power: 35 Watts
- Frequency Response: 1,000 Hz – 20,000 Hz
- Sensitivity: 110 dB ±2 dB
- Impedance: 8 Ohms
- Magnet Type: Ferrite (90 × 15 mm, 12 oz)
- Exit Throat Size: 1.375 in.
- Mounting Depth: 2-7/8 in. (72 mm)
- Overall Dimensions: 4.5 × 4.5 × 5.1 in.
- Mounting Style: Screw-On Horn
- Terminal Type: Heavy-Duty Push Terminals
- Fitment: Universal
Package Includes
- 1 × AudioPipe APHC-4550 Compression Driver

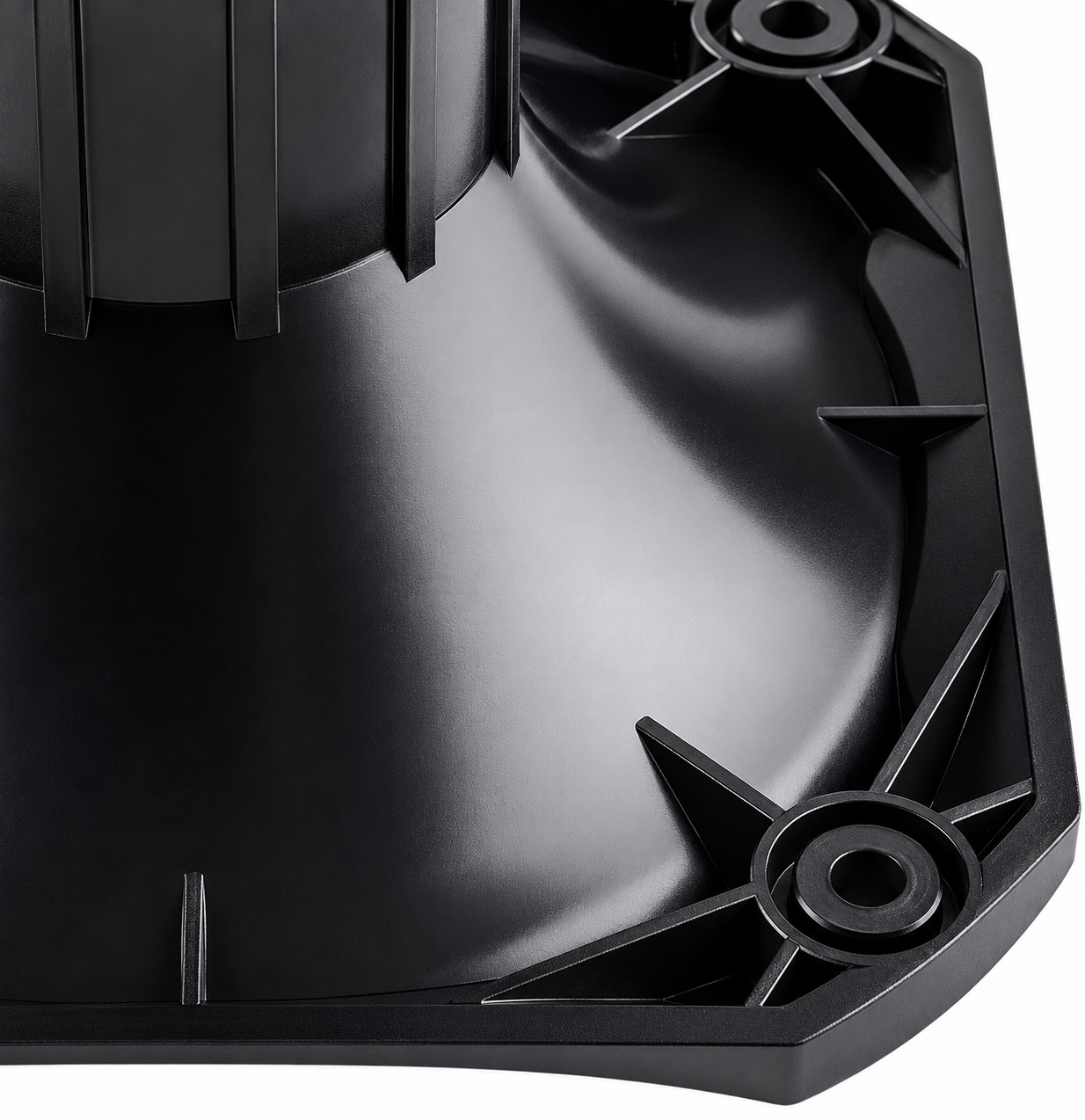

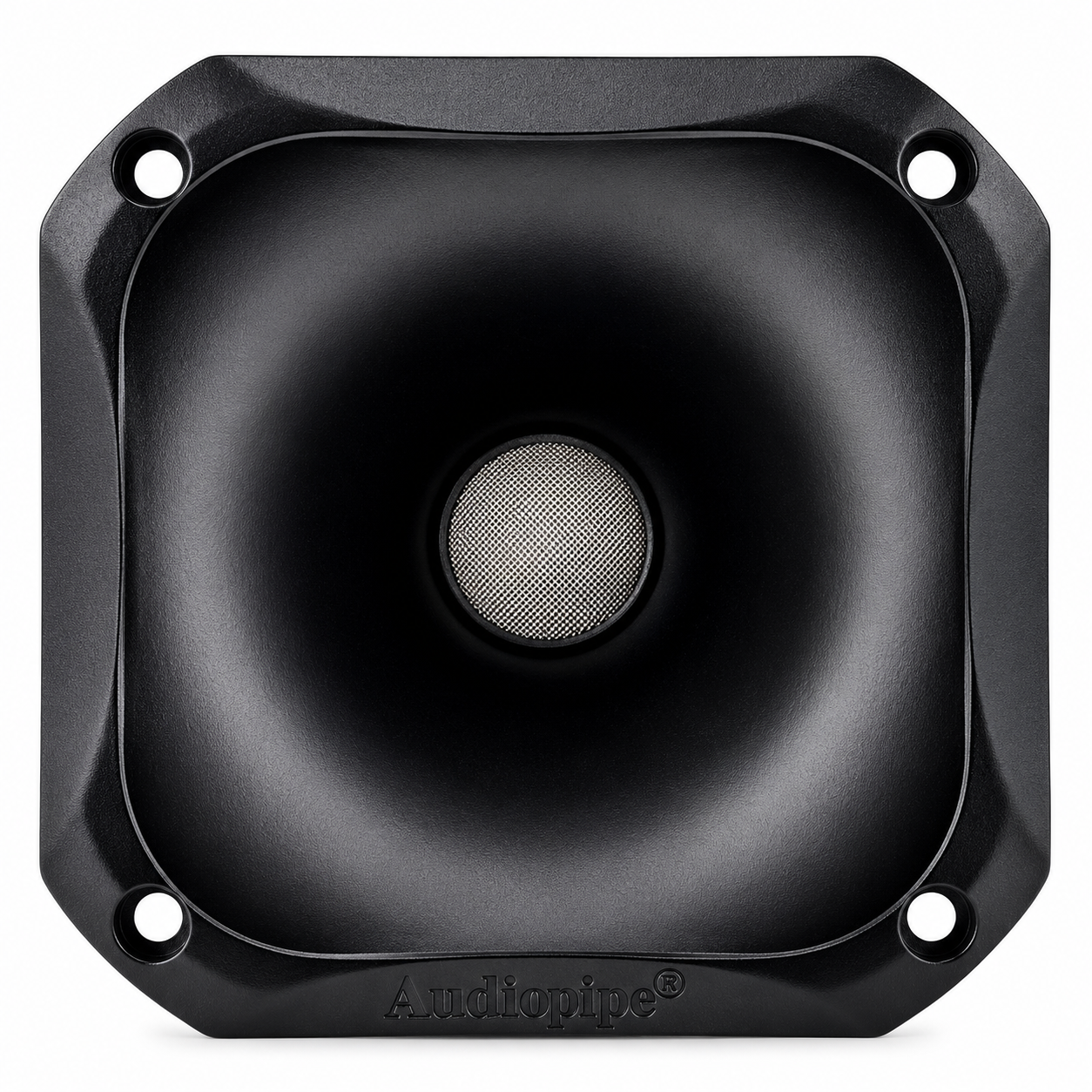

- 1 × 3.5" ABS High-Frequency Horn
