Audiopipe APB-35 AGM 12V 35Ah Deep Cycle Car Audio Battery

Audiopipe APB-35

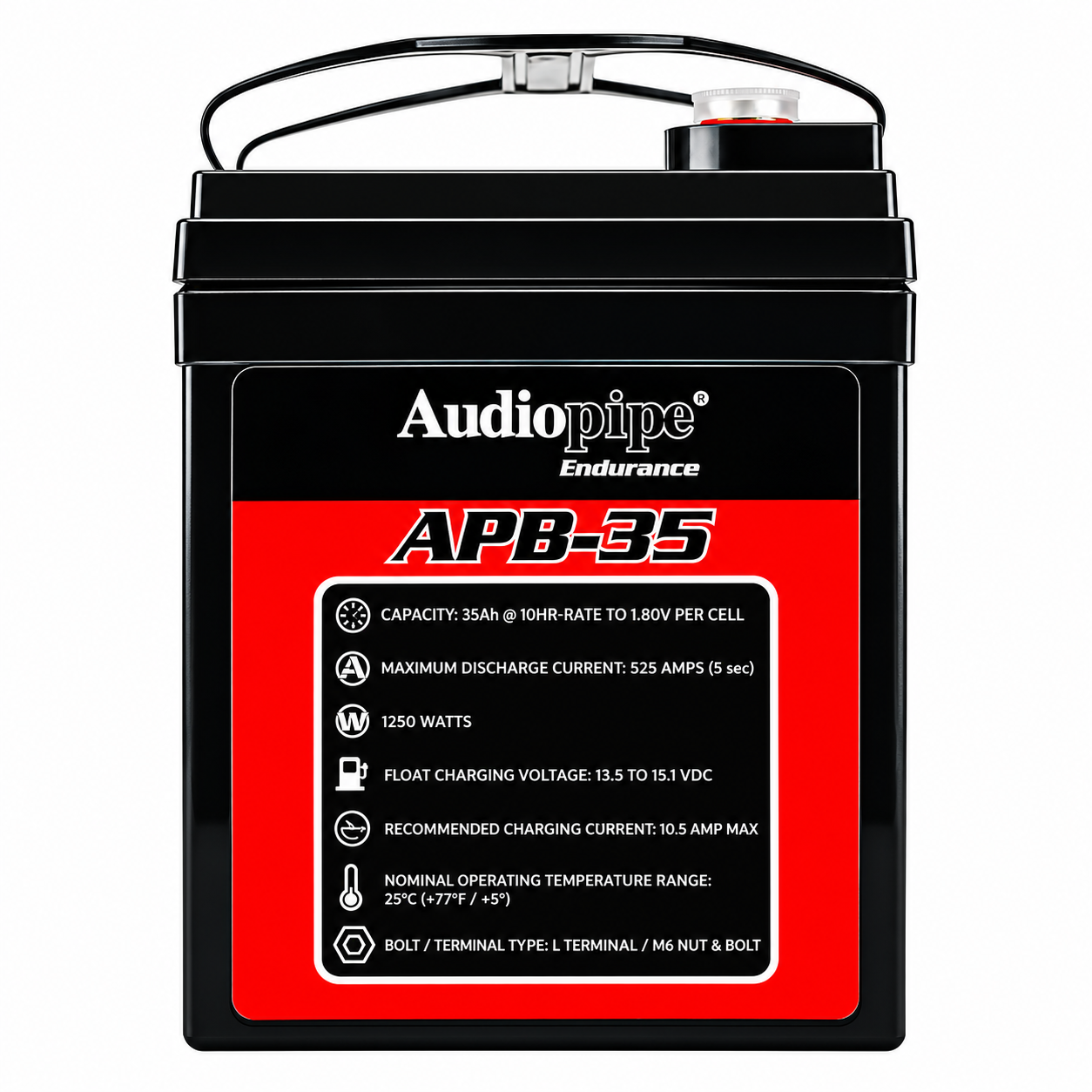

Key Features:

• Product Type: AGM Deep Cycle Power Cell Battery
• Voltage: 12V
• Battery Type: Sealed AGM (Absorbent Glass Mat)
• Capacity: 35Ah @ 10-hour rate to 1.80V per cell
• Group Size: 6T
• Power Handling: Up to 1,250 watts
• Reserve Capacity: 80 minutes
• Maximum Discharge Current: 525A for 5 seconds
• Float Charging Voltage: 13.5–15.1 VDC
• Recommended Charging Current: 10.5A maximum
• Terminal Type: L Terminal
• Terminal Hardware: M6 nut & bolt
• Nominal Operating Temperature: 25°C / 77°F.

Construction

• Sealed AGM deep-cycle construction
• Maintenance-free design
• Designed to withstand repeated charging and discharging cycles
• Heavy-duty L terminals with M6 nut-and-bolt connections
• Compact power-cell configuration designed for car-audio and other high-current 12V applications.

Features

• 35Ah capacity
• 12V nominal output
• Supports car-audio systems rated up to 1,250 watts according to Audiopipe
• 525A maximum 5-second discharge
• 80-minute reserve capacity
• Sealed AGM technology
• Heavy-duty terminal connections
• Designed for amplifiers, auxiliary electrical systems and other compatible 12V applications.

Dimensions

Audiopipe's current product page/catalog does not provide physical battery dimensions or net weight.

A current Audiopipe dealer lists approximately:

• Length: 7.75 in
• Width: 5.00 in
• Height: 6.00 in
• Another dealer lists the height as 6.25 in, so there is a small dimensional conflict.

A current distributor lists the packaged/shipping weight at 24.0 lb.

For marketplace shipping fields, I recommend using the physical carton measurements and scale weight rather than presenting 24 lb as the confirmed bare battery weight.

Performance

• Voltage: 12V
• Capacity: 35Ah
• Energy capacity: approximately 420Wh (12V × 35Ah)
• Maximum Discharge: 525A for 5 seconds
• Reserve Capacity: 80 minutes
• Power Handling: Up to 1,250W
• Float Charge Range: 13.5–15.1V DC
• Recommended Charging Current: 10.5A maximum.

Applications

Designed for:

• Car-audio systems
• Amplifier electrical support
• Auxiliary/secondary battery installations
• Mobile electronics
• Compatible 12V accessory-power applications
• Other applications requiring a compact AGM deep-cycle power source.

Vehicle fitment should be determined by battery dimensions, terminal configuration, electrical requirements and installation setup rather than assuming universal direct replacement.

Included

• 1 × Audiopipe APB-35 12V 35Ah AGM Deep Cycle Battery
• L terminals with M6 nut-and-bolt connection hardware.
